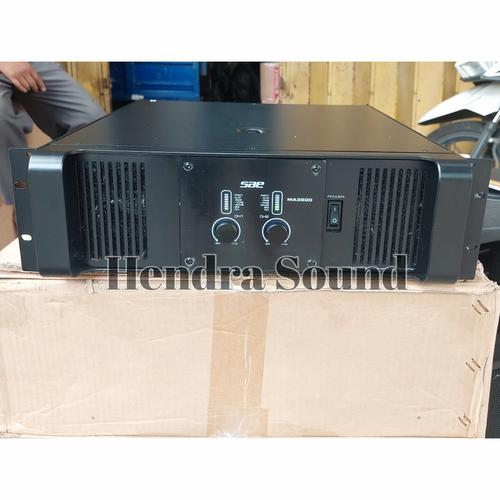

Power Amplifier Ampli SAE MA3600 MA 3600 2 channel Original

Model MA1200 MA3600 MA4800
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo* 850W x2 1500W x2 2000W x2
4Ω Stereo** 1500W x2 2500W x2 3200W x2
2Ω Stereo** 2000W x2 3300W x2 4600W x2
8Ω Bridge** 3000W 5000W 6400W
4Ω Bridge** 3500W 6000W 7200W
Other specifications
Frequency Response 20Hz – 20kHz, +0/-0.5dB 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-1dB
THD+N < 0.02% < 0.05% < 0.05%
S/N Rate ≥ 85dB ≥ 85dB ≥ 85dB
Damping Factor > 280 > 280 > 280
Input Sensitivity 0.775v / 1v / 32dB 0.775v / 1v / 32dB 0.775v / 1v / 32dB
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 40.5dB 43dB 44.2dB
Cooling Air flow from front to rear
Dimension / Weight
Product Dimensions (mm) 483 x 445 x 89 483 x 495 x 133 483 x 495 x 133
Packaging Dimensions (mm) 595 x 565 x 170 620 x 585 x 210 620 x 585 x 210
G.W. 24.5kg 38.1kg 40.1kg
