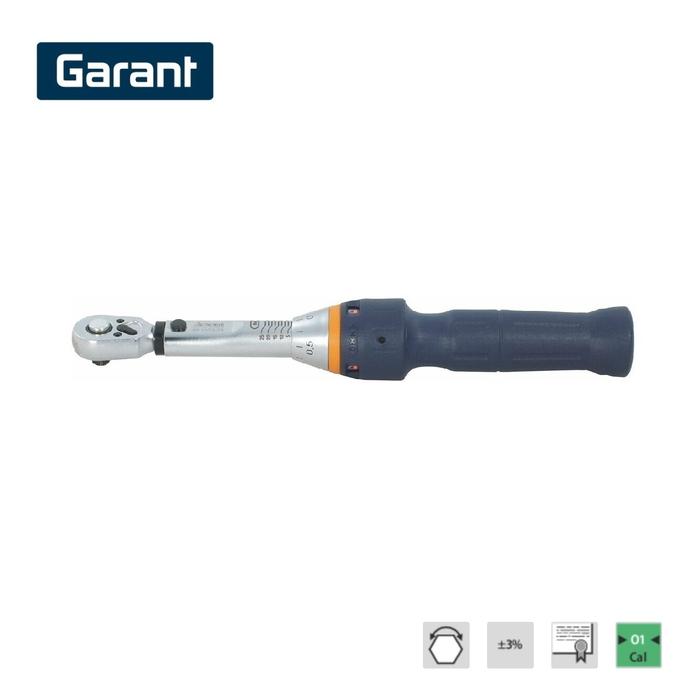

GARANT Torque Wrench with Reversible Ratchet 25 N·m / Kunci Torsi

- Handy and very compact single-arm torque wrench, adjustable by scale and self-triggering. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Reversible ratchet for left-hand and right-hand tightening.
- Acoustic and perceptible “click effect” ensures particularly easy use and accurate setting of the desired torque.
- With built-in reversible ratchet with ejector − for left-hand and right-hand tightening.
- Function: The wrench triggers giving a “signal” (clearly audible acoustic tone and noticeable vibration) and afterwards is immediately ready for use again.
- Application: For medium to larger batch productions.
- Standard: Tested to DIN EN ISO 6789.
- Note: Only right-hand calibration possible. The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.

Merek : GARANT
P/N : 656050 25
Germany.

Technical Data:
- Maximum Torque : 25 N·m
- Direction of Tightening : For Right and Left-Hand Tightening
- Torque Measuring Accuracy : ±3 %
- Test Certificate : Manufacturer’s Test Certificate
- Calibration : O1
- Overall Length L : 242 mm
- Torque Range : 2.5 N·m - 25 N·m
- Scale Graduation, 1 Graduation = : 0.25 N·m
- Square Drive : 1/4 in
- Display : Analogue
- Release Signalling : Akustisk; Haptisk
- Trigger Principle : mechanical Short-Travel Release
- Connection Format : Push-Through Square Drive (Ratchet)
- Measurement Technology : Mechanical
- Data can be Recorded : No
- Setting the Trigger Value : with Adjustment Scale
- Feedback : Triggering
- Reversible Reading : Nm
- Measurement Process : Torque
- Adjustable Trigger Value : Adjustable
- Standard : DIN EN ISO 6789
- Lever Length Including Factory Calibration Reference Dimension [l3] : 172 mm
- Type of Product : Torque Wrench.
