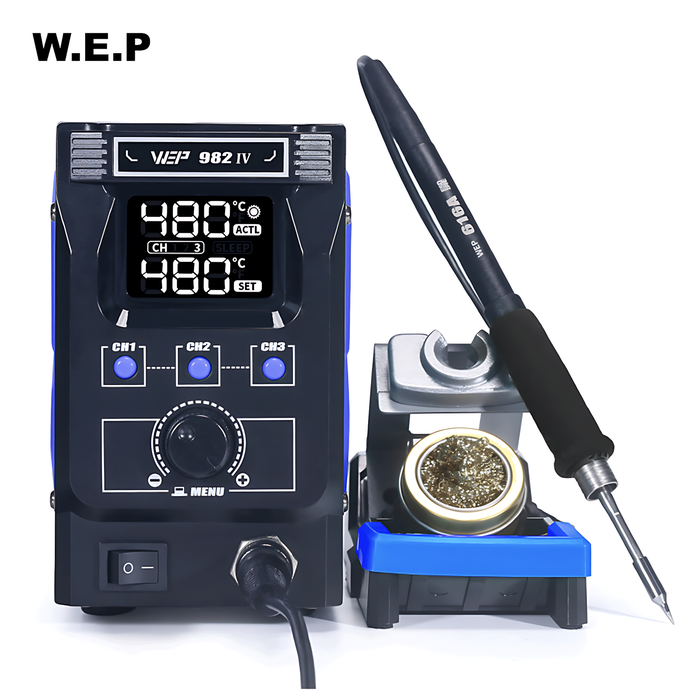

WEP 982-IV C210 Soldering Station Digital Temperature Adjustable 3 Memory Channels ESD Safe

Informasi Produk WEP 982-IV C210 Soldering Station Digital Temperature Adjustable 3 Memory Channels ESD Safe

This unit is suitable for desoldering and soldering operations on various surface-mount components and through-hole components, such as SOP, DIP, SOIC, etc.

1. If a layer of oxidization forms on the surface of the soldering iron tip, a misconception can be created that the tip cannot heat up properly to melt the solder and do the tinning. However, the actual temperatures of both the heating element and the tip are high. in such an instance, please do not increase the temperature value further but use a metal wool ball to remove the oxidization following the steps below:

A. Set the temperature to 300°C (572°F)

B. Once the temperature stabilizes, gently rub the soldering iron tip inside the metal wool ball. C. When the oxidization is partially removed, continue applying solder onto the soldering iron tip while rubbing it until the tip is completely coated with solder. If the tip is too severely oxidized beyond cleaning, replace it with a new one.

2. DO NOT use metal files to remove the oxidization on the soldering iron tip. If the soldering iron tip deforms or rusts, replace the

soldering iron tip with a new tip. 3. DO NOT apply excessive force on the soldering iron tip when soldering. This will not improve the heat transfer and damage the

soldering iron tip instead.

When placing the soldering iron back in the holder to idle after a high-temperature operation, adjust the temperature to 250°C (482°F) or below for idling. Failure to do so, and leaving the soldering iron tip to idle on a high-temperature setting will cause the accelerated aging of the heating element and shorten the lifespan of the heating element and soldering iron tip. 5. After every operation, always clean the soldering iron tip, then coat it with a new layer of solder to prevent its oxidization.

1. The display shows "S-E"- This is an indication that the sensor modulle of the soidering station is faulty, In such an instance, your need to replace the respective heating element (the heating eliement and the sensor modules). Or, the handle is disconnected (Turn OFF the station, connect the handle and tum On the stanion . The display shows "OCP This is an indication of "overcumment protection

Please check the heating element.

Kelengkapan Produk
1xWEP 982-IV C210 Soldering Station Digital Temperature Adjustable 3 Memory Channels ESD Safe


Specification
Rated voltage range 220v-240v
Rated power 50w
Display LED
Operating ambient temp. 0C~40C/32F~104F
Operating ambient temp. 90C~450C/194F~842F
