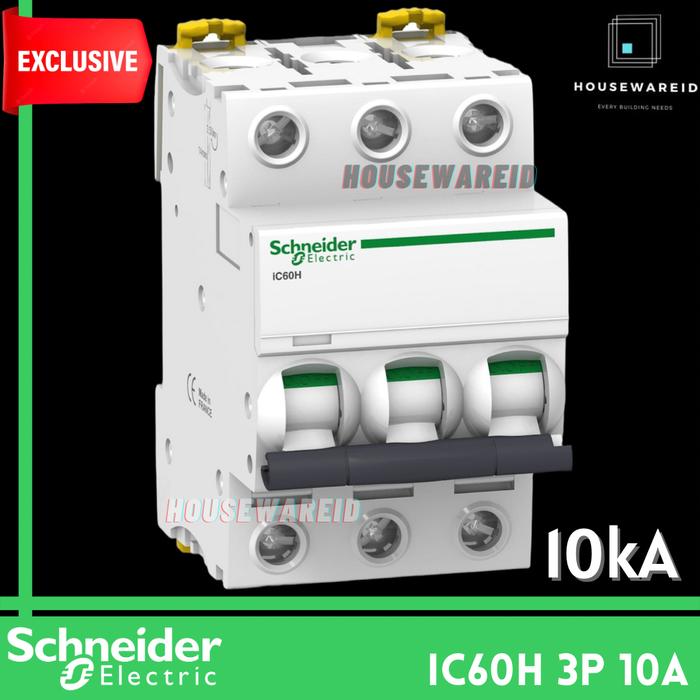

MCB 3p 10a 3 Phase 10 Ampere 10kA Schneider iC60H A9F84310 Original

Rp509.000

diskon 57%

Harga sebelum diskon Rp1.195.500

Kondisi: Baru
Min. Pemesanan: 1 Buah
Etalase: MCB Schneider iC60H

MCB Schneider Acti 9 iC60H 3 Phase 10 Ampere
Spesifikasi :
- Tipe : A9F84310
- Poles Description : 3P
- Number of Protected Poles : 3
- [In] Rated Current : 10 A
- Network Type : DC AC
- Trip Unit Technology : Thermal-magnetic
- Curve Code : C
- #############################
- Breaking Capacity :
- ~10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
- ~15 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2
- ~20 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
- ~70 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
- ~70 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
- ~70 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
- #############################
- Network Frequency : 50/60 Hz
- Magnetic Tripping Limit : 8 x ln +/- 20%
- #############################
- [Ue] Rated Insulation Voltage :
- ~500 V AC 50/60 Hz conforming to EN 60947-2
- ~500 V AC 50/60 Hz conforming to IEC 60947-2
- #############################
- Contact Position Indicator : Yes
- Control Type : Toggle
- Local Signalling : Trip Indicator
- Mounting Mode : Fixed
- Mounting Support : DIN rail
- Comb Busbar and Distribution Block compatibility : Top or Bottom: YES
- 9mm Pitches : 6
- Colour : White

Produk Original Schneider Electric Indonesia. ( SNI )

Sebelum memesan harap bertanya terlebih dahulu tentang ketersediaan barang ( CHAT )

Atau bisa tanya-tanya via WA : 08111 597 596 jangan ragu-ragu langsung Chat saja kami HousewareID akan selalu bersedia membantu anda.
