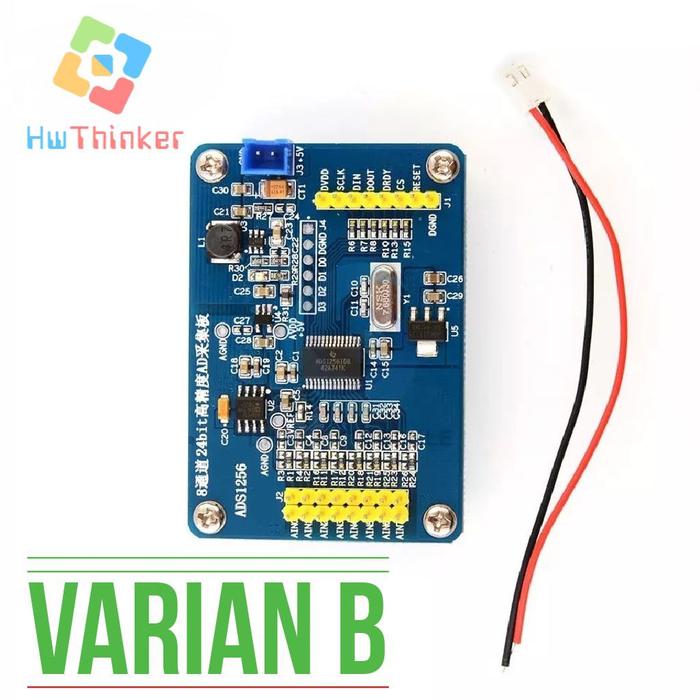

Modul ADC 24 BIT ADS1256 for Data Aquisisi presisi Tinggi - B
Rp475.000
Pilih varian: B
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.
ADC 24 bit 30k SPS (30.000 SPS) via Port SPI
use : Raspberry Pi, Arduino, DSP, MCU, FPGA, Orange pi, banana pi, dll
1 power input terminal, the upper ground, the lower end of +5V.
2.LT3461 power chip, high ripple noise suppression ratio.
3 power indicator.
4.LP2985, LDO can effectively suppress the low frequency noise, produces a very pure +5V, to provide power for the ASD1256 simulation.
5.ADR431BRZ, B series of high precision datum. Reference chip, a high precision 2.500000V benchmark
6 benchmark hole.
7 analog inputs, AIN0-AIN7 a total of eight input ports, can be regarded as 8 independent single input, can also do a 4 differential input, AIN0 and AIN1 as a group, AIN2 and AIN3 AIN4 and AIN5 AIN6 and AIN7.
8 analog input port
9 input resistance and decay resistance when AD Aquisition voltage greater than 5V. Decay resistance is not welded by default.
10.ADS1256 master chip.
11.AMS1117-3.3v, to provide digital voltage for ADS1256.
12. crystal, 7.68MHZ
13 communication interface with MCU.
Isi Paket :
- 1 Buah Modul ADC 24 (ADS 1256) sesuai varian yang dipilih
use : Raspberry Pi, Arduino, DSP, MCU, FPGA, Orange pi, banana pi, dll
1 power input terminal, the upper ground, the lower end of +5V.
2.LT3461 power chip, high ripple noise suppression ratio.
3 power indicator.
4.LP2985, LDO can effectively suppress the low frequency noise, produces a very pure +5V, to provide power for the ASD1256 simulation.
5.ADR431BRZ, B series of high precision datum. Reference chip, a high precision 2.500000V benchmark
6 benchmark hole.
7 analog inputs, AIN0-AIN7 a total of eight input ports, can be regarded as 8 independent single input, can also do a 4 differential input, AIN0 and AIN1 as a group, AIN2 and AIN3 AIN4 and AIN5 AIN6 and AIN7.
8 analog input port
9 input resistance and decay resistance when AD Aquisition voltage greater than 5V. Decay resistance is not welded by default.
10.ADS1256 master chip.
11.AMS1117-3.3v, to provide digital voltage for ADS1256.
12. crystal, 7.68MHZ
13 communication interface with MCU.
Isi Paket :
- 1 Buah Modul ADC 24 (ADS 1256) sesuai varian yang dipilih
