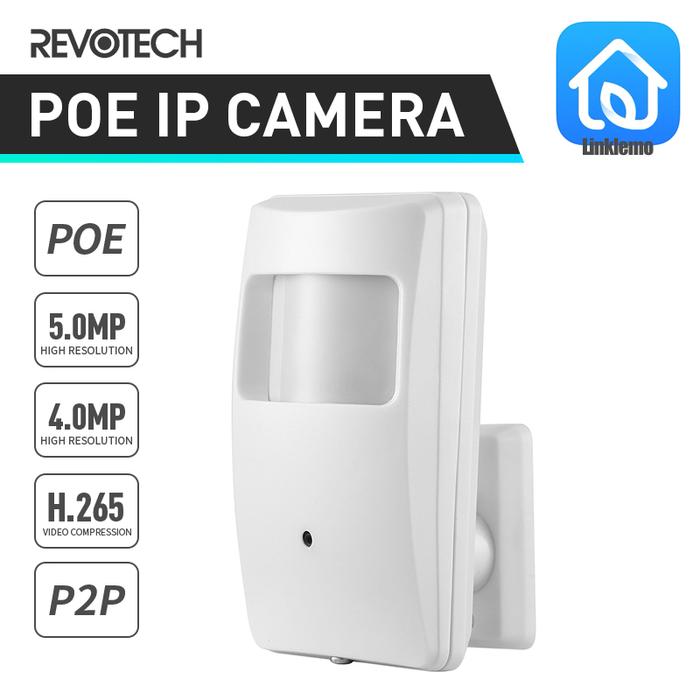

Revotech Mini 940nm PIR IP Camera POE 5MP 4MP Night Vision Indoor 18 IR LED Onvif H.265 Security System Video Surveillance Cam

*** Mohon Chat Sebelum Melakukan Order! ***


AI Functions : Motion Detection
Shell Material : plastic
Color Night Vision : No
Scene : indoor
Megapixels : 5MP
TF Card : None
Power Supply : With POE
Storage : None
Installation : Ceiling
Color : WHITE
is_customized : Yes
Audio Output : None
Minimum Illumination(Lux) : NA
Video Compression Format : H.264
IR Distance(m) : 5-10m
Dimensions (L x W x D)(mm) : 10.2 x 6 x 2.7cm
Power Supply(V) : POE 48V / DC12V
Alarm Action : Email Photo
Power Consumption(W) : NA
Supported Mobile Systems : IOS,Android
Sensor : CMOS
Model Number : IPIR-M-HS
Supported Operating Systems : Windows 10,Windows Vista,Windows 8,Windows 7,Windows 98,Windows XP
Lens (mm) : 3.7mm
Connectivity : IP/Network Wired
High Definition : 5.0 Megapixels
Style : Mini Camera
Brand Name : REVODATA
Origin : Mainland China
Certification : CE
Smart home platform : none
Type : CCTV Camera
Model : IP Camera
Lens : 3.7mm
TV Format : PAL/NTSC
LED : 18 IR
Night Vision : Yes
Color : White
IR Cut : Built-In
Resolution 1 : 5M/1616P
Resolution 2 : 4M/1440P


-HighResolution4.0/5.0Megapixel1/3''CMOSSensor

-4

MP2560*1440P

resolution / 5

MP2880*1616P

resolution

- Support H.265 encode, compare with H.264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;

- Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.

-3.7mm lens

- 18pcs940nm Invisible LED IR Night Vision

- Support iPhone, Android smart phone

- P2P Cloud Function

- Support Motion Detection, Email Alarm function

-

Support web interface of IE6.0 and above browser.

-Day & Night Vision

- Net Weight:0.25KG

-ABS Plastic Material Shell

- Simple Operation and Easy to Use

Note:

1. This camera default 4/5MP & H.265, if your NVR do not support 4/5MP or H.265, you can change our camera into 1080P (2MP) and H.264.

2.
"POE 48V" Option

mean the camera support POE, can power from POE, need to connect with a 802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera).

3.
"DC 12V" Option

mean the camera is regular version, do not support POE and it can only with with a 12V regular power.

POE 4MP 5MP 940nm IR PIR IP Camera 1616P / 1440P Night Vision HD Mini Indoor 18 LED Onvif H.265 Security System Video Surveillance

Camera

Model:IPIR-M-HS

4MP Resolution:

2560 x 1440P 4.0 Mega Pixels
camera

4MP Sensor:

FH8852V201+GC4063

4MP Framerate:25fps

5MP Resolution:

2880 x 1616P 5.0 Mega Pixels
camera

5MP Sensor:

FH8852V200+GC5053

5MP Framerate:20fps

Minillumination:0.01Lux@(F1.2,AGCON)

Shutter:1/25seconds-1/100,000seconds

Lens: 3.7mm

Lensinterfacetype:M12

CompressionFormat:H.264/H.265

Compressionrateoutput:128Kbps~8Mbps

Storage:NVRorComputer

IPaddress:

Dynamic (Default) / Static

Smartalarm:Motiondetection,Emailalarm

Supportprotocol:HTTP,TCP/IP,ICMP, RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS,PPPoE,NTP

Inputprotocol:ThestandardONVIF

Onvif Port: 80

Generalfunction:Akeyrecovery,dualstream,passwordprotection,videohiding

Ethernet:10M/100MmbpsEthernet(RJ-45)

General

Operating Temperature: -25C~60C

Operating Humidity: 10

Power Supply:

POE 48V option support POE 48V(802.3af) & DC12V/2A

DC 12V option support DC12V/2A

Infrared Lamp: 18PCSLED

Housing Material:

ABS Plastic

Dimension:10.2 x 6 x 2.7cm

Weight:0.25kg

Package Content

1 x Camera

1 xUser Manual

1 x Screws Set

Power supply Note:

1.
POE 48V version

can power from POE, need to connect with a802.3AF Standard 48V POE Switch. if you need one, please click the picture to buy.

2.Both
POE 48V version

and
DC 12V version

have not include power adapter, if you need one, please click the picture to buy.

4MP Pictures:

Daytime+Indoor

Nightwithlight+Indoor

5MP Pictures:

Daytime+Indoor

Nightwithlight+Indoor

BrowserViews

Software Views

AppViews

NOTE

:

System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
