Leveller kaki cabinet ITALIANA INTEGRATO Z (isi 4pcs)

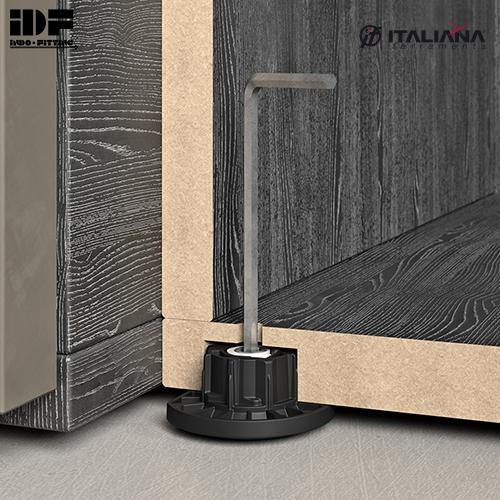

ITALIANA INTEGRATO Z INTEGRATO TECH #34;Z #34; is a further development within the INTEGRATO TECH family. It is conceived for heavy duty furniture whose construction has weight-bearing bottoms. The leveller is installed into the bottom panel by operating a Ø30 mm boring with a 15 mm depth, thus requiring a minimum 18 mm thickness. A Ø6 mm or a Ø8 mm through hole in the bottom panel allows the adjustment of the independent plastic glide by using an S4 or an S6 mm allen wrench. The foot is provided with an indipendent engineering plastic glide in order to make the adjustment easier and to prevent the scratching of the floor. INTEGRATO TECH #34;Z #34; leveller is available with 10 mm adjustment. The capacity loading is 175 Kg each. Specification: - minimum 18 mm thickness - boring with a 15 mm depth - leveller is available with 10 mm adjustment - Load capacity is 175Kg each integrato z part - ITASET0060 30108010EA INTEGRATO Z height adjuster Ø30 H17mm 4 Pcs
