Opening system Italiana Kraby Lift up Frictioning (isi 2pcs)

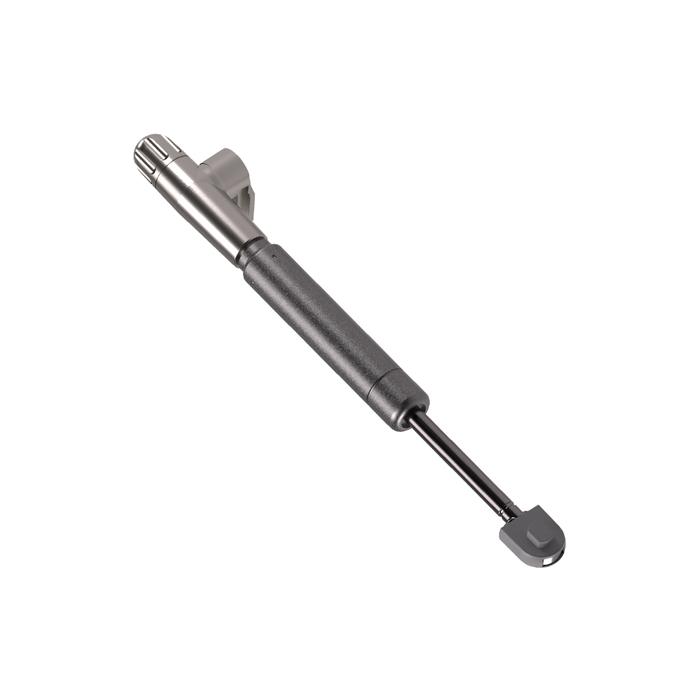

KRABY Frictioning Stay Lift Up

KRABY is a versatile gas and oil containment system for doors. It offers adjustable opening angles and closing times, and is made of durable materials.

KRABY offers some relevant benefits:

The rotary knob placed on the piston base plate can be used to adjust the opening angle and therefore to align nearby doors.
By adjusting the position of the piston base plate within the "U" slot of the side bracket, it is possible to change the time in opening and closing of the door

Kraby frictioningn stay is available in three size:

- L164
- L244
- L355x

Detail:

- Area of application: For stay Drop Down front panels made from wood or Aluminium frame
- Material: Zink Alloy, Steel
- Colour/finish: Metallic Beige
- Unit of force: N45, N60, N90, N120
- Leght: L164, L244, L355
- For door height: L164 = 200-284 mm, L244 = 280-500 mm, L355 = 380-600 mm
- For door Weight: L164 = 1-6 Kg, L244 = 1-13 Kg, L355 = 1-13 Kg
- Version: stay holds the door in any required position.

Set comprises:

L164
2 pcs 42001010UZ - KRABY frictioning stay L164 T-Met
2 pcs 42901030YC - Side bracket KRABY Nk screw holes fixing
2pcs 4291901000 - Plastic cover for door support


L244
2 pcs 42210010NN - KRABY drop down stay L244 T-Met
2 pcs 42918010YC - Door support for lid stay Nk
2 pcs 42901030YC - Side bracket KRABY Nk screw holes fixing
2pcs 4291901000 - Plastic cover for door support


L355
2 pcs 42230010NN - KRABY drop down stay L355 T-Met
2 pcs 42918010YC - Door support for lid stay Nk
2 pcs 42901030YC - Side bracket KRABY Nk screw holes fixing
2pcs 4291901000 - Plastic cover for door support
