Signal Generator SG003A Simulator Calibrator SG-003A Voltage Proc Best

- Dikirim dengan kardus utk keamanan produk

NOTE Dari Fnirsi, versi terbaru sudah upgrade layar lebih terang, Firmware terbaru, dan sedikit perubahan disain luar
Tipe sama Fnirsi seri SG003A

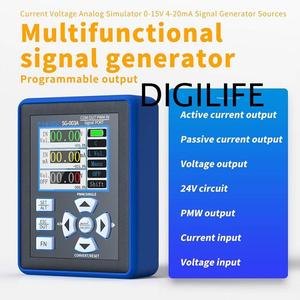

This is a multifunctional signal generator, includes the functions of active current output, passive current output, voltage input, PWM output, 24V loop and so on, can meet the most needs of industrial control engineers.

LCD with adjustable backlight screen


Type-C recharge port, the indicator light is on when charging,and the indicator light will dim when it is fully charged.

Portable size and easy to carry

The voltage and current have automatic output function, it can choose a sin-gle rise,three modes of sin-gle drop and cycle.
With input to output conversion, voltage conversion active current mode, passive current conversion voltage mode functions.

The output has a custom function, and the upper and lower limits of the output can be set according to your needs.
PWM output can set frequency and duty cycle respectively, and with the real-time curve for you to observation of changes in voltage and current.

Specifications
Active current output Ranges 0~24mA
Resolution 0.01mA
Maximum load 750?
±(0.1%+ )
Passive current output
0~24mA
Resolution 0.01mA
External power supplys up to 30V
±(0.1%+ )
Voltage output
0~15V
Resolution 0.01V
±(0.1%+ )
24V voltage output
Drive current 0~24mAh
Resolution 0.01mA
±(0.1%+ )
PWM output (frequency)
Ranges 0~20K, 45K, 90K, 180K
Resolution 1Hz
Accuracy ±2%
PWM output (duty ratio)
Ranges 0~100
Resolution 1%
Accuracy ±2%
Current input
Ranges 0~24mA
Resolution 0.01mA
Accuracy ±(0.1%+ )
Voltage input
Ranges 0~30V
Resolution 0.01V
Accuracy ±(0.1%+ )
Battery 1 * lithium battery, 3000mAh
Package size 92 * 72 * 38mm
Package weight 370g

Packing
1 * Signal Generator
1 * Storage Bag
4 * Test Clip
1 * Silicone Protective Sleeve
1 * USB Cable
1 * User Manual
