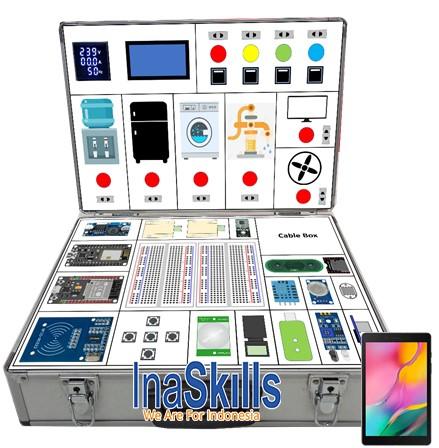

Trainer IoT – Smart Home with Arduino Platform

Features 1. The trainer includes various of peripherals I/O devices suitable for learning Arduino projects 2. The trainer consists of IoT programmable device for Smart Home Appliances with consumable electric power monitoring device 3. Tablet interface with dedicated IoT software 4. Independent I/O block, allowing users to use Dupont wire to build their own applications 5. Step by step procedure in experiment manual 6. Solderless breadboard allows users to create more circuit and integrate them to the system. Specifications 1. Power a. Input : AC 110/220V, 50/60Hz b. Output : +5V/1.0A, +3.3V/1A, 220V/2A 2. Control Board a. ESP32 Devkit V1 1) Core : Xtensa dual core with IEEE 802.11 standard security Wi-Fi 2) Multi-purpose Digital I/O 3) Support ADC and DAC 4) Flash size : 512KB 5) PWM Output 6) Support USART interface with bit banging port 7) Support I2C, I2S, CANBUS amp; SPI interface 8) Programming interface : USB micro 2.0 9) Support Arduino IDE, MicroPython, ESpressif IDF, etc programming frameworks b. NodeMCU 1) Core : ESP8266 (ESP-12E) 2) Multi-purpose Digital I/O 3) Support ADC 4) Flash size : 128KB 5) PWM Output 6) Support USART interface with bit banging port 7) Support I2C interface 8) Programming interface : USB micro 2.0 3. Input Module a. Digital Input 1) Tact switch 2) Touch button b. Sensor Input 1) Temperature amp; Humidity sensor 2) Ultrasonic sensor 3) IR sensor 4) Fingerprint sensor 5) PIR sensor 6) Gas sensor 7) LDR sensor 8) Electric power sensor 4. Output Module a. Alphanumeric LCD b. Pivot lamp c. Electric socket d. Buzzer e. Door lock f. MP3 player g. RTC Module 5. Others module a. RFID module b. Solderless breadboard c. Tablet with dedicated IoT software d. Power module 6. Accessories a. Dupont cables b. AC power cord c. Software with Experiment manual InaSkills - PT. BINA ELEKTRONIKA INDONESIA VOffice Jl. Perserikatan No. 1 Blok A Kav. 261, Rawamangun, Jakarta Timur – Indonesia  (021) 22785687  info@binaelektrindo.com
