JuaL bluetooth 4.0 Audio Receiver Module For Stereo Dual Channel
Rp314.000
- Kondisi: Baru
- Waktu Preorder: 15 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Tools Industri Import

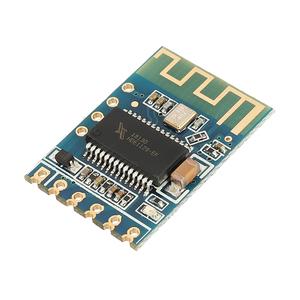

bluetooth 4.0 Audio Receiver Module For Stereo Dual Channel Audio Speaker Amplifier JDY-62A Support IOS
Semua Produk Di Toko Kami PO (Personal Pre-Order) 7-10 Hari Tergantung Stok Dan Posisi Gudang. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari
Manual: to open
Update instructions: JDY-62 model is updated to JDY-62A model, the appearance will be different, and the received one is the standard
Note:
Pins can be soldered to pins or patches with 2.54mm pitch and 2.54 pin headers
Pins Function
Description
1 VCC Voltage range 4.2 to 5V, canâ€t exceed 5V
2 GND Power GND
3 L Left channel output
4 R Right channel output
5 MUTE High level when mute, usually low level
6 KC Empty pin
Common problem:
1. No bluetooth search:
Generally caused by power supply interference, the power supply line must be added with LC filter circuit.
2. Support 3.7 power supply or not:
The module is powered by 5 volts by default. You can replace the upper diode of the JDY-62 module with the 0805 package 0R resistor, or short the wire, so you can use the lithium battery.
3. bluetooth signal is too weak
Do not wire or copper under the bluetooth module antenna, or there should be no metal shielding around the antenna.
4. The current sound is too loud
Generally caused by power ground interference, it is recommended that the power amplifier wiring should not be too long, and the bluetooth ground should be separated from the power ground.
Pakage includes:
1 x Receiver Module
ID-1403256
