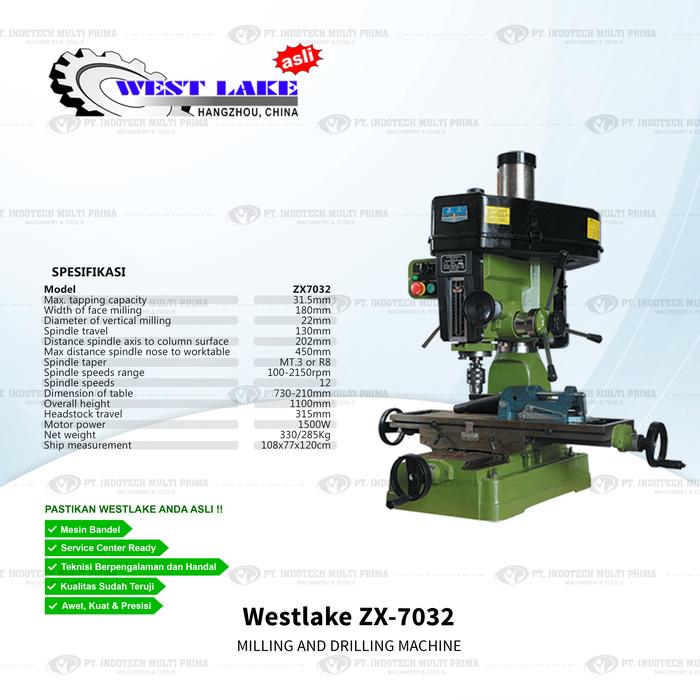

Westlake Asli - Mesin Bor Duduk, Milling And Drilling Machine ZX-7045 / ZX-7032 - ZX-7032

Ada 2 Pilihan Produk : ZX-7045 dan ZX-7032

● Model : ZX-7045
● Max. drilling capacity : 45mm
● Width of face milling : 80mm
● Diameter of vertical milling : 28mm
● Spinder travel : 120mm
● Distance spindle axis to column surface : 260mm
● Max distance spindle nose to worktable : 475mm
● Spindle taper : MT. 4
● Spindle speeds range : 95-1600rpm
● Spindle speeds : 6
● Dimension of table : 820 x 240mm
● Overall height : 1040mm
● Head stock : 410mm
● Motor power : 750W
● Gross weight / Net weight : 340 / 270kg
● Ship measurement : 112 x 82 x 113cm

● Model : ZX-7032
● Max. tapping capacity : 31.5mm
● Width of face milling : 180mm
● Diameter of vertical milling : 22mm
● Spinder travel : 130mm
● Distance spindle axis to column surface : 202mm
● Max distance spindle nose to worktable : 450mm
● Spindle taper : MT. 3 or R8
● Spindle speeds range : 100-2150rpm
● Spindle speeds : 12
● Dimension of table : 730 x 210mm
● Overall height : 1100mm
● Headstock travel : 315mm
● Motor power : 1500W
● Gross weight / Net weight : 330 / 285kg
● Ship measurement : 108 x 77 x 120cm

Produk Berkualitas, Aman&Awet
● Tersedia Service center
● Kualitas produk terjamin & spare part ready

WhatsApp Only: 0813 2777 2988
(Hanya chat tidak bisa menerima telepon)

Catatan :
● Sebelum memesan mohon ditanyakan dulu kepada kami untuk memastikan stock barang
