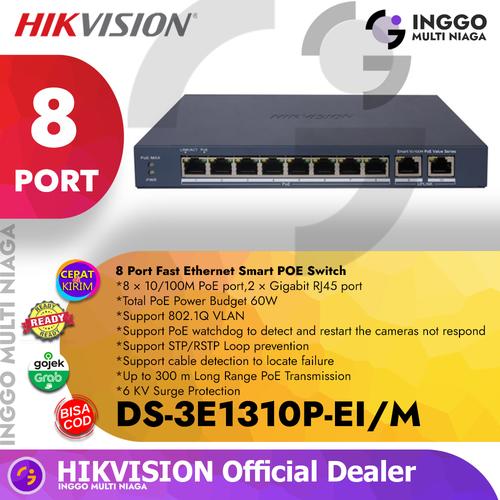

HIKVISION DS-3E1310P-EI/M SMART POE SWITCH 8 PORT POE 2 UPLINK
Rp795.100
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: SWITCH HUB
8 Port Fast Ethernet Smart POE Switch
8 × 100 Mbps PoE RJ45 port, 1 × gigabit network RJ45 port.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 kV surge protection for PoE ports.
Up to 300 m long-range transmission.
AF/AT camera can reach up to 300 m in extend mode.
General
Shell
Metal material
Net Weight
0.54 kg (1.19 lb)
Gross Weight
1.08 kg (2.38 lb)
Dimensions (W × H × D)
217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
DC54 V,1.2 A
Installation Mode
Desk-Mounted,Wall-Mounted
Max. Power Consumption
65 W
Power Consumption In Idle
3.2 W
Surge Protection
6 KV
Network Parameters
Ports
8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table
4 K
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.17 Mpps
Internal Cache
2 Mbits
PoE Power Supply
PoE Standard
IEEE 802.3af,IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
PoE Port
PoE: Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
60 W
Software Function
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 8: auto detect and restart the cameras that do not respond.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
8 × 100 Mbps PoE RJ45 port, 1 × gigabit network RJ45 port.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 kV surge protection for PoE ports.
Up to 300 m long-range transmission.
AF/AT camera can reach up to 300 m in extend mode.
General
Shell
Metal material
Net Weight
0.54 kg (1.19 lb)
Gross Weight
1.08 kg (2.38 lb)
Dimensions (W × H × D)
217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity
5% to 95% (no condensation)
Relative Humidity
5% to 95% (no condensation)
Power Supply
DC54 V,1.2 A
Installation Mode
Desk-Mounted,Wall-Mounted
Max. Power Consumption
65 W
Power Consumption In Idle
3.2 W
Surge Protection
6 KV
Network Parameters
Ports
8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table
4 K
Switching Capacity
5.6 Gbps
Packet Forwarding Rate
4.17 Mpps
Internal Cache
2 Mbits
PoE Power Supply
PoE Standard
IEEE 802.3af,IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
PoE Port
PoE: Ports 1 to 8
Max. Port Power
30 W
PoE Power Budget
60 W
Software Function
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 8: auto detect and restart the cameras that do not respond.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 4094 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
