•• SUPPORT SEMUA JENIS NOTEBOOK/PC DENGAN TYPE C (Support Data) •• SUPPORT MACBOOK M1 / M2 UNTUK MIRROR / EXTENDED SAMPAI 3 MONITOR

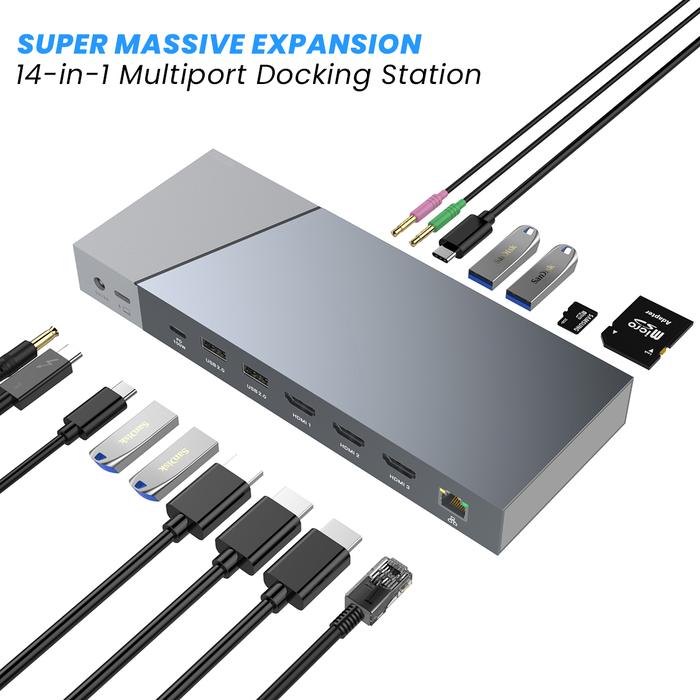

## 14 PORTS DOCKING STATION
Input : • 1x Type C Cable to Notebook / Phone / Tablet • 1x DC Power Port DC 5V 2A
Output: • 1x Type-C Input Power Delivery 100W (Max.) • 2x USB A 2.0 • 3x HDMI 4K@30Hz • 1x RJ45 1000 Mbps (Max.) Gigabit • 1x SD 104 MB/s (Max.) • 1x TF 104 MB/s (Max.) • 2x USB A 3.0 • 1x Type-C Data 500 MB/s (Max.) • 1x Audio Interface 3.5mm • 1x Mic Interface 3.5mm
Features : 1. DC power port : DC auxiliary power supply port, supports plugging in DC 5V/2A 2. TYPE-C 2 port : used to connect to PC, used to charge PC and transmit data 3. TYPE-C 3 port : PD charger socket, provides PD100W protocol, can provide 100W power supply for PC at most 4. USB 2.0 A female port : supports a maximum bandwidth of 480Mbps, and is backward compatible 5. HDMI 1 port : maximum support 4K/30HZ, the premise of this HDMI output is that the PC side needs to support TYPE-C Alt mode, the pure USB data below this HDMI video port has no video output 6. HDMI 2 and HDMI3 Port : internal display link chip, support two 2560*1440 video output, the PC needs to download the latest driver from the official website of display link 7. RJ45 network port : crystal head can be inserted to connect to the network, 1000\100\10Mbps 8. SD and TF card slot Port : 2.0 card reader, can only support a single drive letter, maximum support 2TB capacity card 9. USB 3.0 A Port : maximum support 5Gbps bandwidth, and backward compatible with USB2.0, USB1.1 9.TYPE-C 1 Port : maximum support 5Gbps 10.3.5 audio and microphone : support stereo input and output 11.Power switch : power off and on
Applicable devices : All Type C Notebooks/PC/MacBook Size : 203mm*79mm*24mm Weight : 400gr Material : Aluminum Alloy + PC Color : Grey
Packing List : 1x 14 in 1 Displaylink Docking Station 1x Type C to Type C ( 80Cm) 1x Type A to Type C ( 80Cm) 1x USB A to Jack DC
