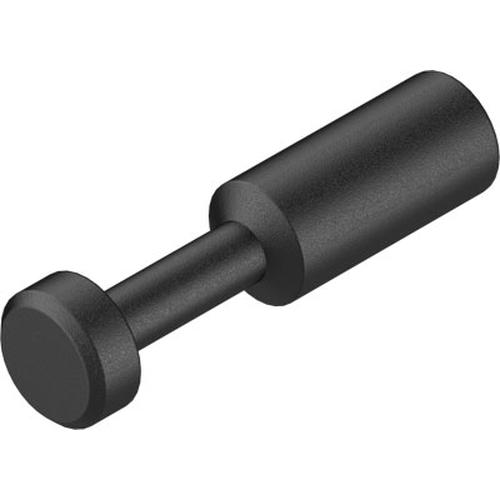

BLANKING PLUG QSC-10H

#34;Size Standard Assembly position Any Container size 10 Operating pressure complete temperature range -0.95 ... 6 bar Temperature dependent operating pressure -0.95 ... 14 bar Maritime classification see certificate Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer #39;s declaration at www.festo.com Note on operating and pilot medium Lubricated operation possible Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -10 ... 80 °C Product weight 2 g Pneumatic connection, port 1 Push-in sleeve QS-10 Materials note Conforms to RoHS Material housing PBT #34;
