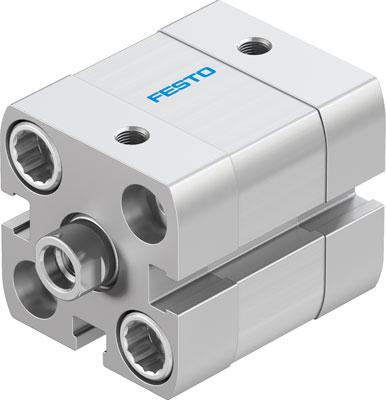

COMPACT CYLINDER 5MM ADN-20-5-I-P-A

Stroke 5 mm Piston diameter 20 mm Piston rod thread M6 Cushioning P: Flexible cushioning rings/plates at both ends Assembly position Any Conforms to standard ISO 21287 Piston-rod end Female thread Position detection For proximity sensor Variants Single-ended piston rod Operating pressure 0.6 ... 10 bar Mode of operation double-acting Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 2 - Moderate corrosion stress Ambient temperature -20 ... 80 °C Impact energy in end positions 0.2 J Theoretical force at 6 bar, return stroke 141 N Theoretical force at 6 bar, advance stroke 188 N Moving mass with 0 mm stroke 30 g Additional weight per 10 mm stroke 21 g Basic weight for 0 mm stroke 131 g Additional mass factor per 10 mm of stroke 6 g Mounting type Optional with through hole with internal (female) thread with accessories Pneumatic connection M5 Materials note Conforms to RoHS Material cover Aluminium Anodised Material seals TPE-U(PUR) Material piston rod High alloy steel Material cylinder barrel Wrought Aluminium alloy Smooth anodised
