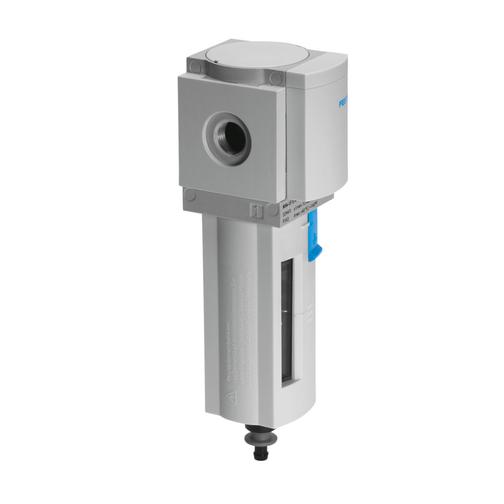

FESTO Filter MS6-LF-1/2-ERM (529615)

Size 6
Series MS
Mounting position Vertical +/-5°
Grade of filtration 40 µm
Condensate drain Manually rotating
Design Sintered filter with centrifugal separator
Bowl guard Plastic bowl guard
Degree of condensate separation >75 %
Symbol 00991519
Operating pressure 0 bar ... 20 bar
Standard nominal flow rate (standardised to DIN 1343) 4100 l/min
Operating medium Compressed air to ISO 8573-1:2010 [-:9:-]
Inert gases
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Storage temperature -10 °C ... 60 °C
Suitable for use with food See supplementary material information
Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:4]
Media temperature -10 °C ... 60 °C
Ambient temperature -10 °C ... 60 °C
Pore size <40 µm
Product weight 600 g
Type of mounting Either:
In-line installation
With accessories
Pneumatic connection, port 1 G1/2
Pneumatic connection, port 2 G1/2
Note on materials RoHS-compliant
Material seals NBR
Material filter PE
Material housing Die-cast aluminium
Material bowl PC
Material separating plate POM
