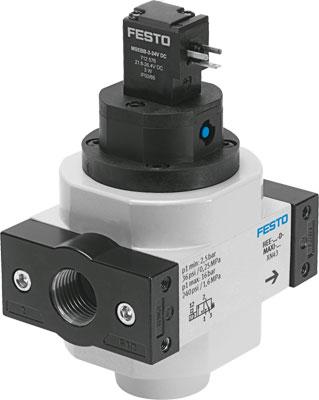

FESTO on-off valve HEE-1-D-MAXI-24 (172953)

Design structure Piston slide Type of actuation electrical Sealing principle soft Exhaust-air function not throttleable Manual override detenting Type of reset mechanical spring Type of piloting Piloted Valve function 3/2 closed, monostable Operating pressure 2.5 ... 16 bar C value 27.6 l/sbar b value 0.32 Standard nominal flow rate 6,500 l/min Duty cycle 100 % Characteristic coil data 24 V DC: 3 W Permissible voltage fluctuation +/- 10 % Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Inert gases Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 2 - Moderate corrosion stress Materials note Conforms to RoHS Medium temperature -10 ... 60 °C Ambient temperature -10 ... 60 °C Mounting type Line installation with accessories Assembly position Any Flow direction non reversible Product weight 800 g Pneumatic connection, port 1 G1 Pneumatic connection, port 2 G1 Pneumatic connection, port 3 G3/8 Air purity class at output Compressed air in accordance with ISO8573-1:2010 [7:4:4] Inert gases Electrical connection Plug pattern type C to EN 175301-803 Plug Per DIN EN 175301-803 Signal status display with accessories Material seals NBR Material housing Aluminium die cast
