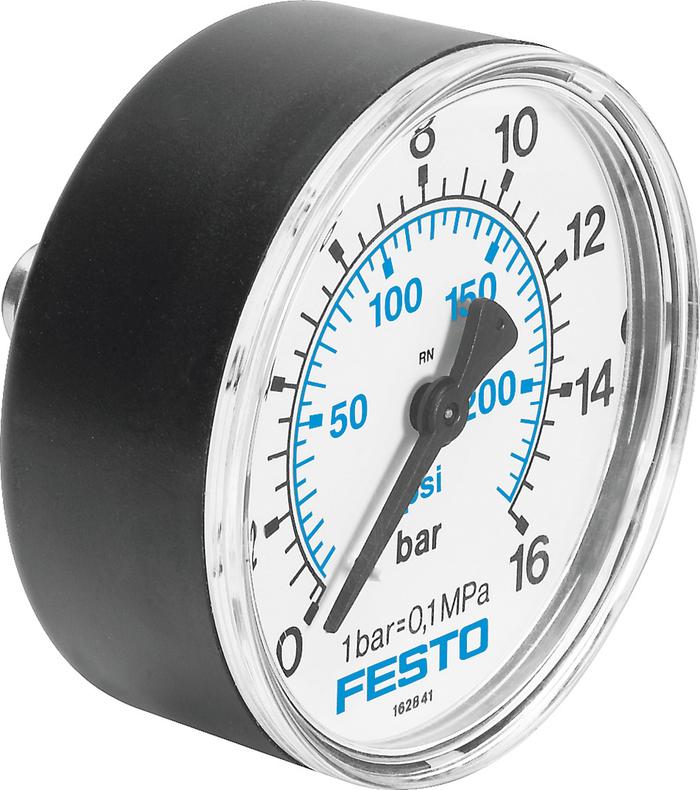

FESTO Pressure gauge MA-50-16-1/4 (356759)

Indicating range 0 bar ... 16 bar Indicating range 0 psi ... 232 psi Symbol 00991463 Conforms to standard EN 837-1 Nominal size of pressure gauge 50 Explosion protection The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Design Bourdon tube pressure gauge Type of mounting In-line installation Operating medium Inert gases Neutral fluids Operating pressure 0 MPa ... 1.6 MPa Operating pressure 0 bar ... 16 bar Operating pressure 0 psi ... 232 psi Alternating load factor 0.66 Measurement accuracy class 2.5 Degree of protection IP43 Media temperature -20 °C ... 60 °C Ambient temperature -20 °C ... 60 °C LABS (PWIS) conformity VDMA24364-B2-L Note on materials RoHS-compliant Position of connection Centred, rear side Pneumatic connection G1/4 Material in contact with the medium Brass Material screw-in stud Brass Material housing ABS Material screen PS Housing colour Black Product weight 70 g Note on operating and pilot medium No acetylene No oxygen Scale Double scale Bar (outside scale) psi (inner scale)
