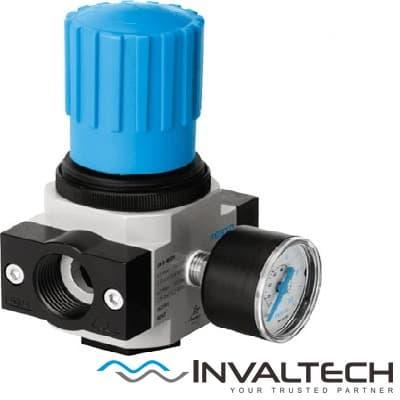

FESTO PRESSURE REGULATOR LR-1/4-D-MIDI (186451)

Size Midi
Series D
Actuator lock Rotary knob with lock
Assembly position Any
Design structure directly-controlled diaphragm regulator
Controller function Output pressure constant
with initial pressure compensation
with secondary exhaust
Pressure gauge with pressure gauge
Operating pressure 0 ... 16 bar
Pressure regulation range 0.5 ... 12 bar
Max. pressure hysteresis 0.2 bar
Standard nominal flow rate 2,100 l/min
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Air purity class at output Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Inert gases
Medium temperature -10 ... 60 C
Ambient temperature -10 ... 60 C
Maritime classification see certificate
Product weight 720 g
Mounting type Front panel installation
Line installation
with accessories
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 G1/4
Materials note Conforms to RoHS
Material of connecting plate Zinc die-casting
Material seals NBR
Material housing Zinc die-casting
