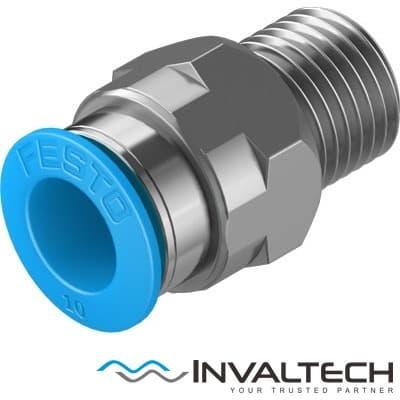

FESTO PUSH IN FITTING QS-3/8-10 (153008 )
Terjual 100+
bintang 5 (6 rating)
Rp55.500
- Kondisi: Baru
- Berat Satuan: 60 g
- Kategori: Fitting Pneumatic
- Etalase: FITTING LURUS
Push-in fitting QS-3/8-10 (153008)
Size Standard
Nominal size 9 mm
Type of seal on screw-in stud coating
Assembly position Any
Container size 10
Design structure Push/pull principle
Operating pressure complete temperature range -0.95 ... 6 bar
Temperature dependent operating pressure -0.95 ... 14 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Water as per manufacturer's declaration at www.festo.com
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 - Low corrosion stress
Ambient temperature -10 ... 80 °C
Maritime classification see certificate
Product weight 24 g
Pneumatic connection, port 1 Male thread R3/8
Pneumatic connection, port 2 For tubing outside diameter 10 mm
Colour of release ring blue
Materials note Conforms to RoHS
Material housing Brass
Nickel plated
Material release ring POM
Material of tubing seal NBR
Material of tube retaining claw High alloy steel, non-corrosive
NOTE : Untuk ketersediaan STOCK harap ditanyakan terlebih dahulu ( Terima Kasih )
