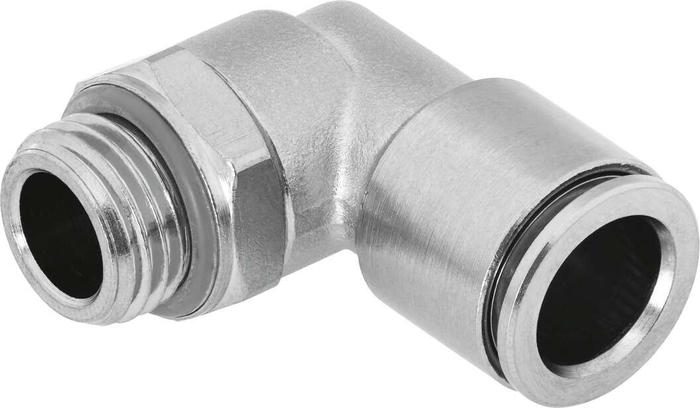

FESTO Push-in L-fitting NPQH-L-G18-Q6-P10 (578281)

Size Standard Nominal size 5 mm Tubing insertion depth 15.8 mm Type of seal on screwed plug Sealing ring Mounting position optional Design L-shape Size of pack 10 Design Push-pull principle Symbol 00997424 Operating pressure complete temperature range -0.095 MPa ... 2 MPa Operating pressure complete temperature range -0.95 bar ... 20 bar Operating pressure complete temperature range -13.775 psi ... 290 psi Note on operating pressure Water: max. 0.6 MPa at 0 - 50 °C Certificate issuing authority NSF C0523185 Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Note on operating and pilot medium Lubricated operation possible Corrosion resistance class CRC 3 - high corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Cleanroom class Class 4 according to ISO 14644-1 Suitable for use with food See declaration of conformity NSF/ANSI 169 Ambient temperature 0 °C ... 150 °C Nominal torque 6 Nm Tolerance for nominal tightening torque ± 20% Product weight 19.3 g Type of mounting External hexagon, A/F 13 mm Pneumatic connection, port 1 Male thread G1/8 Pneumatic connection, port 2 For tubing outside diameter of 6 mm Note on materials RoHS-compliant Material housing Brass, chemically nickel-plated Material thread seal FPM Guard ring material PEI Material release ring Brass, chemically nickel-plated Material tubing seal FPM Material tubing clamp component High-alloy stainless steel Thrust ring material PEI
