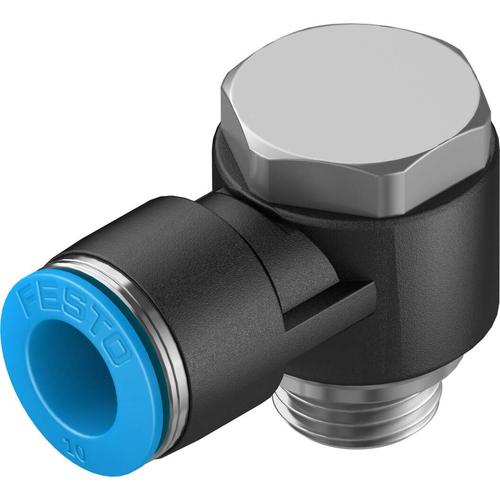

FESTO Push-in L-fitting QSLV-G1/4-10 (186143)

Size Standard Nominal size 7 mm Type of seal on screwed plug Sealing ring Mounting position optional Design L-shape Size of pack 10 Design Push-pull principle Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa Operating pressure complete temperature range -0.95 bar ... 6 bar Operating pressure complete temperature range -13.775 psi ... 87 psi Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa Temperature-dependent operating pressure -0.95 bar ... 14 bar Temperature-dependent operating pressure -13.775 psi ... 203 psi Maritime classification See certificate Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer #39;s declaration at www.festo.com Note on operating and pilot medium Lubricated operation possible Corrosion resistance class CRC 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C ... 80 °C Nominal torque 9 Nm Tolerance for nominal tightening torque ± 20% Product weight 48 g Type of mounting Hollow bolt with external hex Pneumatic connection, port 1 Male thread G1/4 Pneumatic connection, port 2 For tubing outside diameter of 10 mm Colour of release ring Blue Note on materials RoHS-compliant Material housing PBT Material hollow bolt Nickel-plated brass Material release ring POM Material tubing seal NBR Material tubing clamp component High-alloy stainless steel
