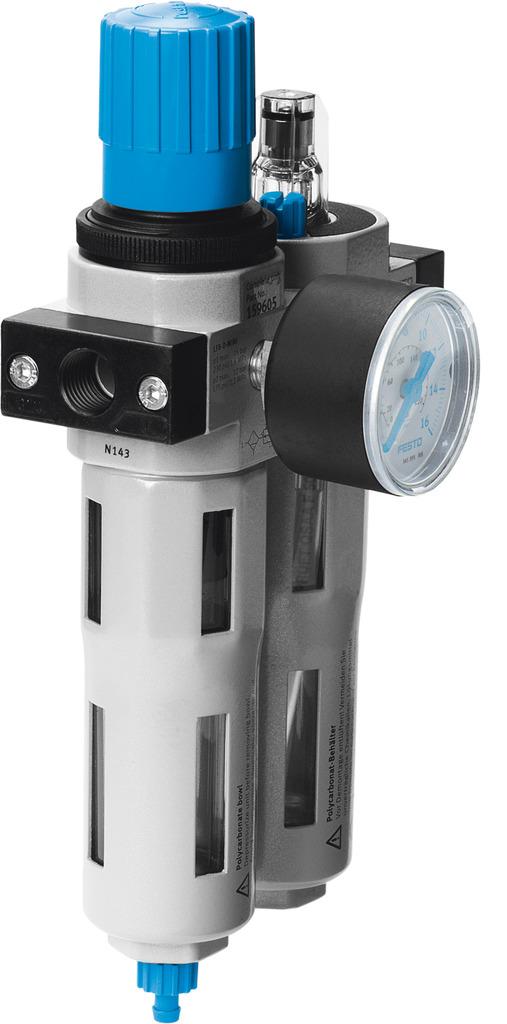

FESTO Service unit FRC-3/8-D-MINI (162734)

Size Mini Series D Actuator lock Rotary knob with detent Mounting position Vertical +/-5° Condensate drain Manually rotating Design Filter regulator with pressure gauge Proportional standard mist lubricator Max. condensate volume 22 ml Grade of filtration 40 µm Bowl guard Metal bowl guard Symbol 00991549 Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge Operating pressure 0.1 MPa ... 1.6 MPa Operating pressure 1 bar ... 16 bar Pressure regulation range 0.5 bar ... 12 bar Max. pressure hysteresis 0.02 MPa Max. pressure hysteresis 0.2 bar Max. pressure hysteresis 2.9 psi Standard nominal flow rate (standardised to DIN 1343) 1200 l/min Operating medium Compressed air to ISO 8573-1:2010 [-:9:-] Inert gases Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Air purity class at output Compressed air to ISO 8573-1:2010 [7:8:-] Inert gases Media temperature -10 °C ... 60 °C Ambient temperature -10 °C ... 60 °C Product weight 660 g Type of mounting In-line installation With accessories Pneumatic connection, port 1 G3/8 Pneumatic connection, port 2 G3/8 Note on materials RoHS-compliant Material housing Die-cast zinc Material bowl PC
