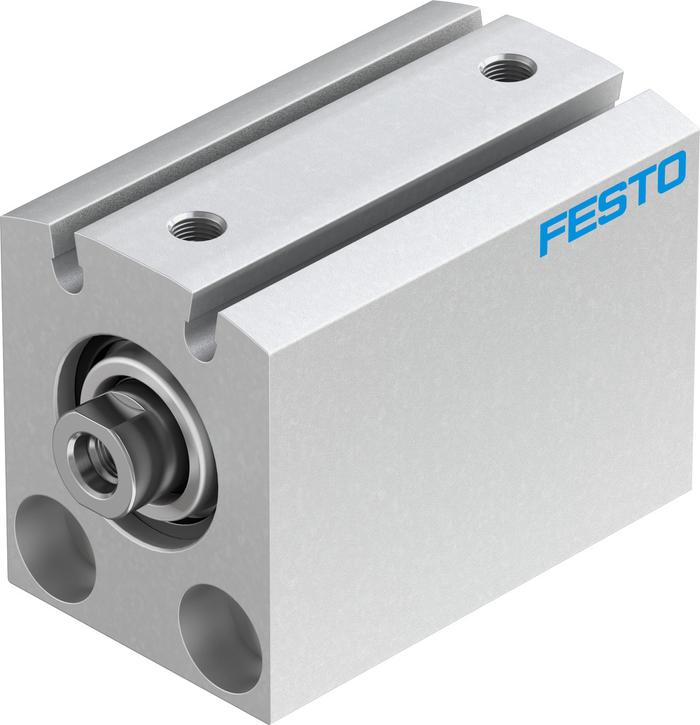

FESTO Short-stroke cylinder ADVC-20-20-I-P-A (188143)

Stroke 20 mm Piston diameter 20 mm Cushioning Elastic cushioning rings/plates at both ends Mounting position optional Mode of operation Double-acting Design Piston Piston rod Position detection Via proximity switch Symbol 00991217 Operating pressure 0.1 MPa ... 1 MPa Operating pressure 1 bar ... 10 bar Operating pressure 14.5 psi ... 145 psi Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -20 °C ... 80 °C Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 141 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 189 N Moving mass 35 g Moving mass for 0 mm stroke 23 g Additional moving mass per 10 mm stroke 6 g Product weight 158 g Basic weight for 0 mm stroke 105 g Additional weight per 10 mm stroke 30 g Type of mounting Either: With through-hole With accessories Pneumatic connection M5 Note on materials RoHS-compliant Material cover Wrought aluminium alloy Anodised Material seals TPE-U(PU) Material housing Wrought aluminium alloy Anodised Material piston rod High-alloy steel
