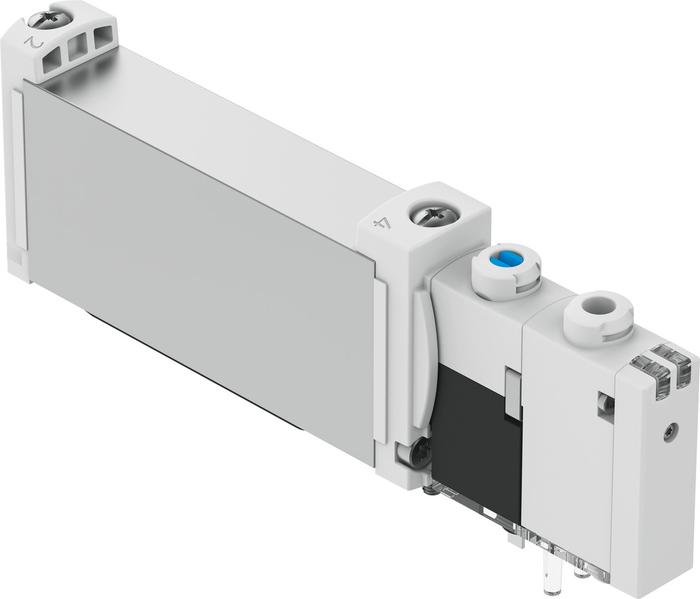

FESTO Solenoid valve VUVG-B14-M52-AZT-F-1T1L (573482)

Valve function 5/2-way, monostable Type of actuation Electric Valve size 14 mm Standard nominal flow rate (standardised to DIN 1343) 500 l/min pneumatic working port Flange Operating voltage 24V DC Operating pressure -0.09 MPa ... 1 MPa Operating pressure -0.9 bar ... 10 bar Design Piston gate valve Type of reset Pneumatic spring Approval c UL us - Recognized (OL) Degree of protection IP65 IP67 Exhaust-air function With flow control option Sealing principle Soft Mounting position optional Manual override Detenting Non-detenting Type of piloting Pilot actuated Pilot air supply External Flow direction Reversible Symbol 00991053 lap Overlap Signal status display LED Pilot pressure 0.15 MPa ... 0.8 MPa Pilot pressure 1.5 bar ... 8 bar Max. switching frequency 3 Hz Switching time off 26 ms Switching time on 13 ms Duty cycle 100% Max. positive test pulse with 0 signal 1600 µs Max. negative test pulse with 1 signal 3000 µs Characteristic coil data 22 V DC: 1.0 W Permissible voltage fluctuations +/- 10 % Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Media temperature -5 °C ... 60 °C Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4] Ambient temperature -5 °C ... 60 °C Product weight 91 g Electrical connection Via sub-base Type of mounting On manifold rail Note on materials RoHS-compliant Material seals HNBR NBR Material housing Wrought aluminium alloy
