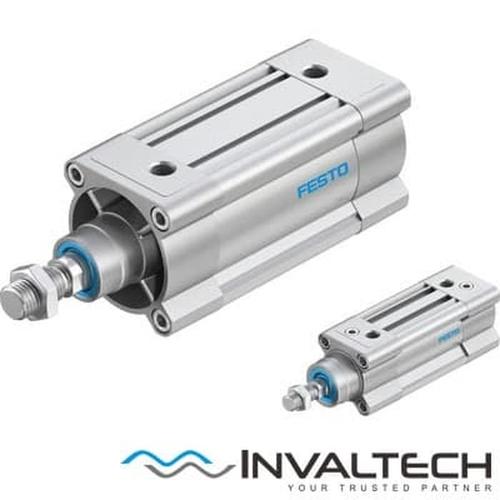

FESTO standards-based cylinder DSBC-63-40-PPVA-N3 (1383579)

Stroke 40 mm
Piston diameter 63 mm
Piston rod thread M16x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Conforms to standard ISO 15552
Piston-rod end Male thread
Design structure Piston
Piston rod
Profile barrel
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 0.4 ... 12 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 °C
Impact energy in end positions 1.3 J
Cushioning length 22 mm
Theoretical force at 6 bar, return stroke 1,682 N
Theoretical force at 6 bar, advance stroke 1,870 N
Moving mass with 0 mm stroke 430 g
Additional weight per 10 mm stroke 62 g
Basic weight for 0 mm stroke 1,740 g
Additional mass factor per 10 mm of stroke 25 g
Mounting type with internal (female) thread
with accessories
Optional
Pneumatic connection G3/8
Materials note Conforms to RoHS
Material cover Die-cast aluminium, coated
Material piston seal TPE-U(PU)
Material piston Wrought Aluminium alloy
Material piston rod High alloy steel
Material piston rod wiper seal TPE-U(PU)
Buffer seal material TPE-U(PU)
Cushion piston material POM
Material cylinder barrel Smooth-anodised wrought aluminium alloy
Material nut steel, galvanized
Material bearing POM
Material of flange screw steel, galvanized
