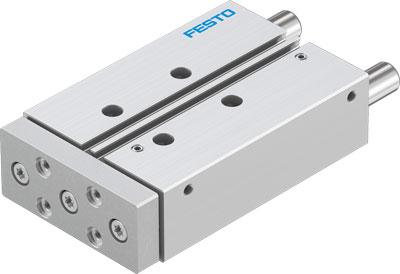

GUIDED DRIVE 2.35NM DFM-20-80-P-A-GF

Centre of gravity distance from working load to yoke plate 50 mm Stroke 80 mm Piston diameter 20 mm Operating mode of drive unit Yoke Cushioning P: Flexible cushioning rings/plates at both ends Assembly position Any Guide Plain-bearing guide Design structure Guide Position detection For proximity sensor Operating pressure 2 ... 10 bar Max. speed 0.8 m/s Mode of operation double-acting Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -20 ... 80 °C Impact energy in end positions 0.2 Nm Max. permissible torque load Mx as a function of the stroke 2.35 Nm Max. useful load as a function of the stroke at defined distance xs 86 N Theoretical force at 6 bar, return stroke 141 N Theoretical force at 6 bar, advance stroke 188 N Moving mass 672 g Product weight 1,422 g alternative connections See product drawing Pneumatic connection M5 Materials note Conforms to RoHS Material cover Wrought Aluminium alloy Material seals NBR Material housing Wrought Aluminium alloy Material piston rod High alloy steel, non-corrosive
