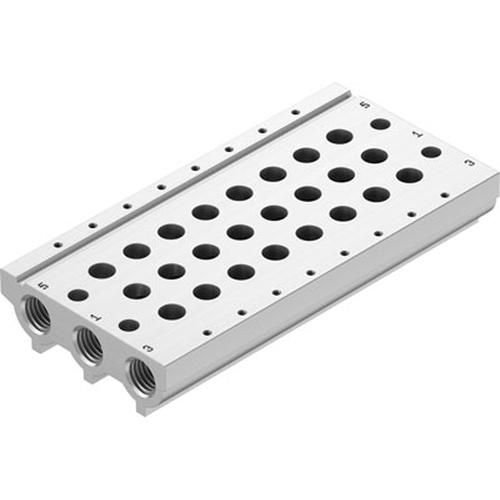

MANIFOLD RAIL G-1/8 VABM-L1-10S-G18-8

Grid dimension 10.5 mm Max. number of valve positions 16 Operating pressure -0.9 ... 10 bar Authorisation RCM Mark c CSA us (OL) c UL us - Recognized (OL) Corrosion resistance classification CRC 2 - Moderate corrosion stress Max. tightening torque, H-rail mounting 1.5 Nm Max. tightening torque, valve mounting 0.45 Nm Max. tightening torque, wall mounting 3 Nm Product weight 156 g Pneumatic connection, port 1 G1/8 Pneumatic connection, port 3 G1/8 Materials note Conforms to RoHS Material manifold Wrought Aluminium alloy
