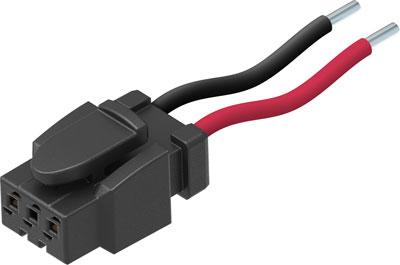

PLUG SOC CBL 2.5M NEBV-H1G2-KN-2.5-N-LE2

Cable identification Without inscription label holder Assembly position Any Product weight 17 g Electrical connection 1, function Field device side Electrical connection 1, design Angular Electrical connection 1, connection type Plug socket Electrical connection 1, cable outlet Straight Electrical connection 1, connection technology Connection pattern H Electrical connection 1, number of pins/wires 3 Electrical connection 1, occupied pins/wires 2 Electrical connection 1, type of mounting Snap-in locking Electrical connection 2, function Controller side Electrical connection 2, connection type 2 single wires Electrical connection 2, connection technology Open end Electrical connection 2, number of pins/wires 2 Electrical connection 2, occupied pins/wires 2 Operating voltage range DC 0 ... 60 V Acceptable current load at 40°C 3 A Cable length 2.5 m Cable attribute Standard Cable diameter 1.3 mm Cable structure 2x0,14 Nominal conductor cross-section 0.14 mm2 Wire ends Cut off bluntly Protection class IP40 Note on degree of protection in assembled condition Ambient temperature -5 ... 60 °C Materials note Conforms to RoHS Material housing POM Housing colour Black Material electrical contact Copper alloy Galvanised Material insulation PVC
