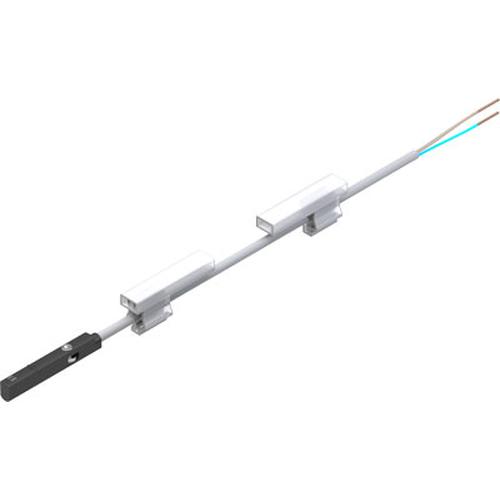

PROX SENSOR SME-10M-DS-24V-E-2,5-L-OE

Design for round slot Conforms to standard EN 60947-5-2 Authorisation C-Tick CE mark (see declaration of conformity) to EU directive for EMC Special characteristics Oil resistant Materials note Free of copper and PTFE Conforms to RoHS Halogen-free Measured variable Position Measuring principle Reed magnetic Ambient temperature -40 ... 70 °C Switch output with contact, bipolar Switching element function Normally open contact Switching output repetition accuracy in ± mm 0.1 mm Switch-on time lt;= 1.2 ms Switch-off time lt;= 1 ms Max. switching frequency 50 Hz Max. output current 300 mA Max. output current in mounting kits 50 mA Max. contact rating AC 9 VA Max. contact rating DC 9 W Max. switching capacity DC in mounting kits 1.5 W Max. switching capacity AC in mounting kits 1.5 VA Voltage drop lt;= 1.5 V Short circuit strength No Overload withstand capability Not available Nominal operating voltage DC 24 V Operating voltage range AC 5 ... 30 V Operating voltage range DC 5 ... 30 V Polarity protected No Electrical connection 1, connection type Cable Electrical connection 1, connection technology Open end Electrical connection 1, number of pins/wires 3 Connector exit direction axial Test conditions of cable Bending strength according to Festo standard Test conditions on request Chain link trunking: 5 million cycles, bending radius 28 mm Torsion resistance: gt; 300,000 cycles, ±270°/0.1 m Cable length 2.5 m Cable attribute Energy chain + robot Material cable sheath TPE-U(PUR) Mounting type Tightened Insertable in slot from above Max. tightening torque 0.4 Nm Assembly position Any Product weight 16.8 g Material housing PA-reinforced High alloy steel, non-corrosive Operating status display Yellow LED Ambient temperature with flexible cable installation -20 ... 70 °C Protection class IP65 IP68
