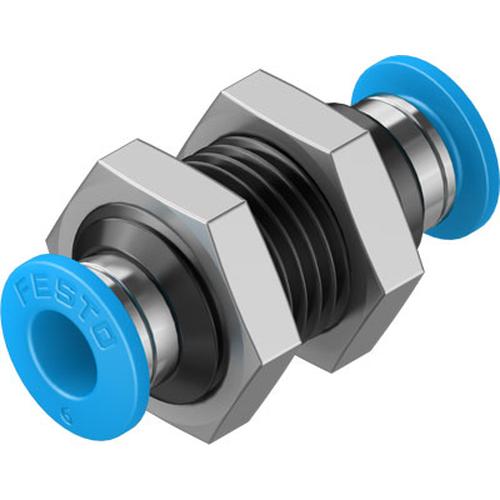

PUSH IN BULK HEAD CONNECTOR 5MM QSS-6

Size Standard Nominal size 5 mm Assembly position Any Container size 10 Design structure Push/pull principle Operating pressure complete temperature range -0.95 ... 6 bar Temperature dependent operating pressure -0.95 ... 14 bar Maritime classification see certificate Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer #39;s declaration at www.festo.com Note on operating and pilot medium Lubricated operation possible Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -10 ... 80 °C Product weight 16 g Pneumatic connection, port 1 For tubing outside diameter 6 mm Pneumatic connection, port 2 For tubing outside diameter 6 mm Colour of release ring blue Materials note Conforms to RoHS Material housing Brass Nickel plated Material release ring POM Material of tubing seal NBR Material of tube retaining claw High alloy steel, non-corrosive
