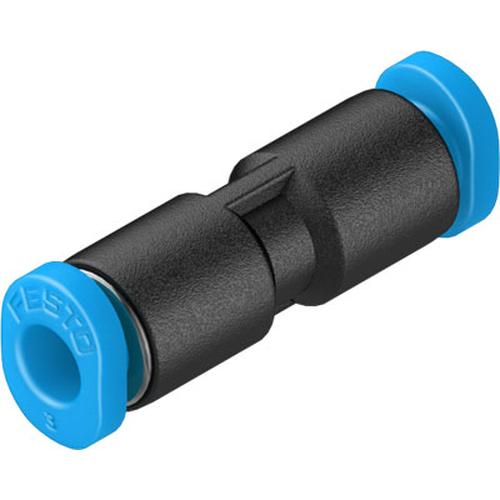

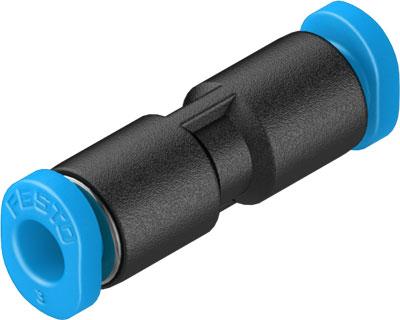

PUSH IN CONNECTOR 1.9MM QSM-3
Terjual 60+
bintang 5 (4 rating)
Rp73.537
- Kondisi: Baru
- Berat Satuan: 50 g
- Min. Beli: 1 Buah
- Kategori: Fitting Pneumatic
- Etalase: Festo New
Size Mini
Nominal size 1.9 mm
Assembly position Any
Container size 10
Design structure Push/pull principle
Operating pressure complete temperature range -0.95 ... 6 bar
Temperature dependent operating pressure -0.95 ... 14 bar
Maritime classification see certificate
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 - Low corrosion stress
Ambient temperature -10 ... 80 °C
Product weight 1.5 g
Pneumatic connection, port 1 For tubing outside diameter 3 mm
Pneumatic connection, port 2 For tubing outside diameter 3 mm
Colour of release ring blue
Materials note Conforms to RoHS
Material housing PBT
Material release ring POM
Material of tubing seal NBR
Material of tube retaining claw High alloy steel, non-corrosive
Nominal size 1.9 mm
Assembly position Any
Container size 10
Design structure Push/pull principle
Operating pressure complete temperature range -0.95 ... 6 bar
Temperature dependent operating pressure -0.95 ... 14 bar
Maritime classification see certificate
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
Note on operating and pilot medium Lubricated operation possible
Corrosion resistance classification CRC 1 - Low corrosion stress
Ambient temperature -10 ... 80 °C
Product weight 1.5 g
Pneumatic connection, port 1 For tubing outside diameter 3 mm
Pneumatic connection, port 2 For tubing outside diameter 3 mm
Colour of release ring blue
Materials note Conforms to RoHS
Material housing PBT
Material release ring POM
Material of tubing seal NBR
Material of tube retaining claw High alloy steel, non-corrosive
