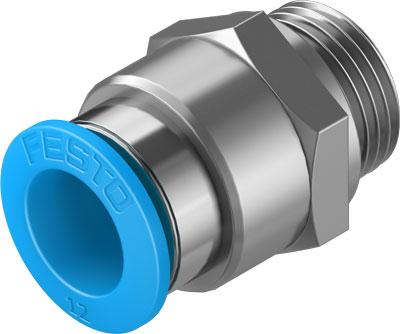

PUSH-IN FITTING 11 MM QS-G3/8-12

Size Standard Nominal size 11 mm Type of seal on screw-in stud Sealing ring Assembly position Any Container size 10 Design structure Push/pull principle Operating pressure complete temperature range -0.95 ... 6 bar Temperature dependent operating pressure -0.95 ... 14 bar Maritime classification see certificate Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-] Water as per manufacturer #39;s declaration at www.festo.com Note on operating and pilot medium Lubricated operation possible Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -10 ... 80 °C Nominal tightening torque 15.5 Nm Tolerance for nominal tightening torque ± 20 % Product weight 33 g Pneumatic connection, port 1 Male thread G3/8 Pneumatic connection, port 2 For tubing outside diameter 12 mm Colour of release ring blue Materials note Conforms to RoHS Material housing Brass Nickel plated Material release ring POM Material of tubing seal NBR Material of tube retaining claw High alloy steel, non-corrosive
