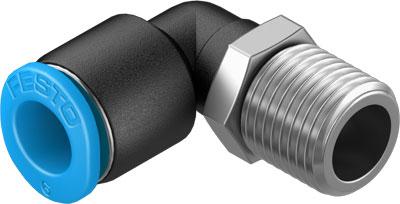

PUSH-IN L-FITTING 3.3 MM QSML-1/8-6

Size Mini Nominal size 3.3 mm Type of seal on screw-in stud coating Assembly position Any Container size 10 Design structure Push/pull principle Operating pressure complete temperature range -0.95 ... 6 bar Temperature dependent operating pressure -0.95 ... 14 bar Maritime classification see certificate Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-] Note on operating and pilot medium Lubricated operation possible Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -10 ... 80 °C Product weight 7 g Pneumatic connection, port 1 Male thread R1/8 Pneumatic connection, port 2 For tubing outside diameter 6 mm Colour of release ring blue Materials note Conforms to RoHS Material housing PBT Material release ring POM Material of tubing seal NBR Material of tube retaining claw High alloy steel, non-corrosive
