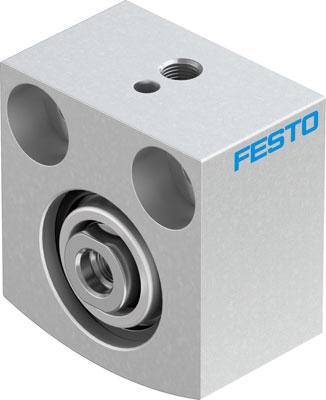

SH/STROKE CYLINDER AEVC-20-5-I-P

Stroke 5 mm Piston diameter 20 mm Spring return force, retracted 5 N Cushioning P: Flexible cushioning rings/plates at both ends Assembly position Any Mode of operation single-acting pushing action Design structure Piston Piston rod Position detection No Operating pressure 1.5 ... 10 bar Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -20 ... 80 °C Theoretical force at 6 bar, advance stroke 180 N Moving mass 14 g Product weight 85 g Mounting type Optional with through hole with accessories Pneumatic connection M5 Materials note Free of copper and PTFE Material cover Wrought Aluminium alloy Anodised Material seals NBR TPE-U(PU) Material housing Wrought Aluminium alloy Anodised Material piston rod High alloy steel
