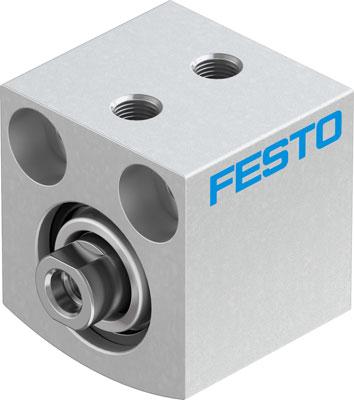

SHORT STROKE CYLINDER ADVC-16-5-I-P

Stroke 5 mm Piston diameter 16 mm Cushioning P: Flexible cushioning rings/plates at both ends Assembly position Any Mode of operation double-acting Design structure Piston Piston rod Position detection No Operating pressure 1 ... 10 bar Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 1 - Low corrosion stress Ambient temperature -20 ... 80 °C Theoretical force at 6 bar, return stroke 90 N Theoretical force at 6 bar, advance stroke 121 N Moving mass 11 g Product weight 68 g Mounting type Optional with through hole with accessories Pneumatic connection M5 Materials note Free of copper and PTFE Material cover Wrought Aluminium alloy Anodised Material seals NBR TPE-U(PU) Material housing Wrought Aluminium alloy Anodised Material piston rod High alloy steel
