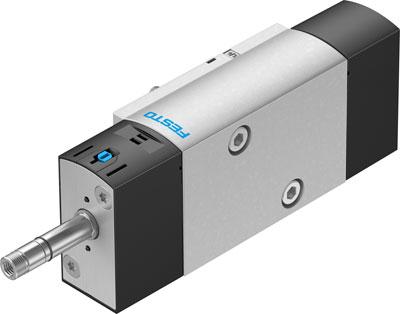

SOLENOID VALVE VSNC-FC-M52-MD-G14-F8

Valve function 5/2 or 3/2, convertible
Type of actuation electrical
Width 32 mm
Standard nominal flow rate 1,250 l/min
Operating pressure 2.5 ... 10 bar
Design structure Piston slide
Type of reset mechanical spring
Authorisation c UL us - Recognized (OL)
Certificate issuing department DNVGL-TAA000011J
Exhaust-air function throttleable
Sealing principle soft
Assembly position Any
Conforms to standard VDI/VDE 3845 (NAMUR)
Manual override detenting
Pushing
Type of piloting Piloted
Pilot air supply Internal
Flow direction non reversible
Overlap Positive overlap
Signal status display with accessories
b value 0.4
C value 5.2 l/sbar
Standard nominal flow rate, exhaust air return 4->3 110 l/min
Switching time off 48 ms
Switching time on 11 ms
Duty cycle 100 %
Characteristic coil data See solenoid coil, to be ordered separately
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Medium temperature -20 ... 60 °C
Ambient temperature -20 ... 60 °C
Product weight 335 g
Mounting type with through hole
Scavenging orifice connection Non-ducted
Pneumatic connection, port 1 G1/4
Pneumatic connection, port 2 NAMUR port pattern
Pneumatic connection, port 3 G1/4
Pneumatic connection, port 4 NAMUR port pattern
Pneumatic connection, port 5 G1/4
Materials note Conforms to RoHS
Material seals NBR
Material housing Wrought Aluminium alloy
Material screws High alloy steel, non-corrosive
