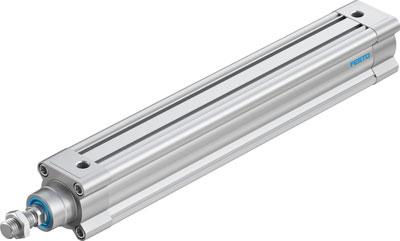

STANDARD CYLINDER DSBC-50-320-PPVA-N3

Rp3.316.902
  • Kondisi: Baru
  • Waktu Preorder: 10 Hari
  • Min. Pemesanan: 1 Buah
  • Etalase: Festo New
Stroke 320 mm
Piston diameter 50 mm
Piston rod thread M16x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
Conforms to standard ISO 15552
Piston-rod end Male thread
Design structure Piston
Piston rod
Profile barrel
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 0.4 ... 12 bar
Mode of operation double-acting
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
Corrosion resistance classification CRC 2 - Moderate corrosion stress
Ambient temperature -20 ... 80 °C
Impact energy in end positions 1 J
Cushioning length 22 mm
Theoretical force at 6 bar, return stroke 990 N
Theoretical force at 6 bar, advance stroke 1,178 N
Moving mass with 0 mm stroke 365 g
Additional weight per 10 mm stroke 56 g
Basic weight for 0 mm stroke 1,190 g
Additional mass factor per 10 mm of stroke 25 g
Mounting type Optional
with internal (female) thread
with accessories
Pneumatic connection G1/4
Materials note Conforms to RoHS
Material cover Aluminium die cast
coated
Material seals TPE-U(PU)
Material piston rod High alloy steel
Material cylinder barrel Wrought Aluminium alloy
Smooth anodised
