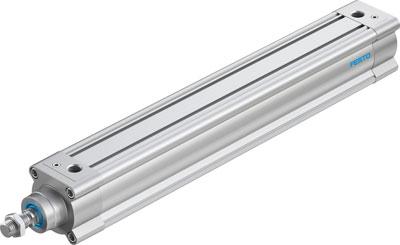

STANDARD CYLINDER DSBC-63-400-PPVA-N3

Stroke 400 mm Piston diameter 63 mm Piston rod thread M16x1,5 Cushioning PPV: Pneumatic cushioning adjustable at both ends Assembly position Any Conforms to standard ISO 15552 Piston-rod end Male thread Design structure Piston Piston rod Profile barrel Position detection For proximity sensor Variants Single-ended piston rod Operating pressure 0.4 ... 12 bar Mode of operation double-acting Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation) Corrosion resistance classification CRC 2 - Moderate corrosion stress Ambient temperature -20 ... 80 °C Impact energy in end positions 1.3 J Cushioning length 22 mm Theoretical force at 6 bar, return stroke 1,682 N Theoretical force at 6 bar, advance stroke 1,870 N Moving mass with 0 mm stroke 430 g Additional weight per 10 mm stroke 62 g Basic weight for 0 mm stroke 1,740 g Additional mass factor per 10 mm of stroke 25 g Mounting type Optional with internal (female) thread with accessories Pneumatic connection G3/8 Materials note Conforms to RoHS Material cover Aluminium die cast coated Material seals TPE-U(PU) Material piston rod High alloy steel Material cylinder barrel Wrought Aluminium alloy Smooth anodised
