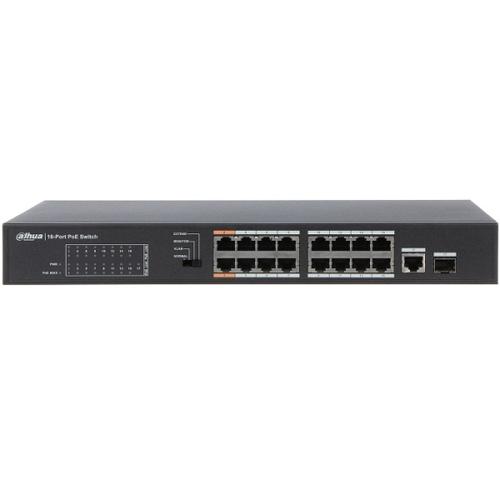

Dahua PFS3117-16ET-135 16 port PoE + 1 port Gigabit Combo PoE Switch
Rp1.857.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
PFS3117-16ET-135
16-Port FE PoE+ 1-Port Gigabit Combo PoE Switch
> Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
> Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.
> Supports Store-and-Forward
> 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)
> Port 1-2 support the maximum power of 60W, PoE output total power up to 135W
> Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
> 4K entry MAC address table with auto-learning and auto-aging
> LED indicators for monitoring power, link and activity
Model DH-PFS3117-16ET-135
Standards IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE
Interface 16 x 10/100Mbps RJ45
1 x Gigabit Combo (RJ45/SFP)
Transfer Method Store-and-Forward
Switching Capacity 5.2Gbps
Packet Forwarding Rate 3.87Mpps
Packet Buffer 2.75Mbit
PoE Ports(RJ45)
Port 1/2 : Hi-PoE/PoE+/PoE;
Port 1-16 : PoE+/PoE
Power Pin Assignment
1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
Other PoE port: 4/5 (+), 7/8 (-)
PoE Budget 135W
Indicators
Per Device
Power: Green MAX : Red
Per Port
Link/Act: Green PoE: Yellow
Power Supply AC 100V~240V 50/60HZ
Dimensions (W × D × H) 340*200*43 mm (13” metal case)
Environment
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
16-Port FE PoE+ 1-Port Gigabit Combo PoE Switch
> Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards
> Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
> Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.
> Supports Store-and-Forward
> 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)
> Port 1-2 support the maximum power of 60W, PoE output total power up to 135W
> Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
> 4K entry MAC address table with auto-learning and auto-aging
> LED indicators for monitoring power, link and activity
Model DH-PFS3117-16ET-135
Standards IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE
Interface 16 x 10/100Mbps RJ45
1 x Gigabit Combo (RJ45/SFP)
Transfer Method Store-and-Forward
Switching Capacity 5.2Gbps
Packet Forwarding Rate 3.87Mpps
Packet Buffer 2.75Mbit
PoE Ports(RJ45)
Port 1/2 : Hi-PoE/PoE+/PoE;
Port 1-16 : PoE+/PoE
Power Pin Assignment
1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
Other PoE port: 4/5 (+), 7/8 (-)
PoE Budget 135W
Indicators
Per Device
Power: Green MAX : Red
Per Port
Link/Act: Green PoE: Yellow
Power Supply AC 100V~240V 50/60HZ
Dimensions (W × D × H) 340*200*43 mm (13” metal case)
Environment
Operating Temperature: 0°C ~ 45°C
Storage Temperature: -40°C ~ 70°C
Operating Humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
