Ibasso Dc01 Dc02 Dc03 Dc04 Dc05 Dc06 Mobile Phone 3.5 Headphone Jack Hifi Type-C Decoding Dac Amp Ak4490 Ak4493 Cs43131 Es9212C - DC05 black

DC01 output interface 2.5mm
DC02 output interface 3.5mm
DC03 output interface 3.5mm
DC04 output interface 4.4mm
DC05 output interface 3.5mm
DC06 output interface 4.4mm+3.5mm
DC03PRO output interface 3.5mm

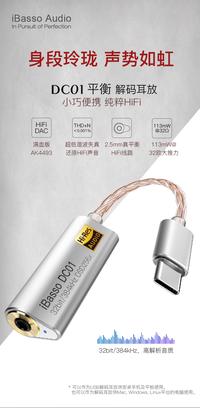

DC01
DAC chip: AK4493
THD+N: <0.01% (32 ohm load, 1.2 Vrms)
Output power: 113mW@32ohm
Frequency response: 20HZ-40KHZ
PCM: up to 32bit/384kHz DSD: Native DSD64, DSD128, DSD256
Weight: 11 grams
Length: 120mm


DC02
DAC chip: AK4490EQ
THD+N: <0.001% (32ohm load, 0.9Vrms)
Output level: 900mV (32 Ohm load)
Frequency response: 20Hz- 40kHz +0.5dB
PCM: up to 32bit/384kHz
DSD: Native DSD64, DSD128, DSD256
Weight: 8g
Length: 120mm


DC03
DAC chip: CS43131*2
THD+N: <0.00028% (320 load, 1.2Vrms)
Output level: 2Vrms (300Q load) 1.61Vrms (32Q load)
Output power: 80mW@32Q
Signal to noise ratio: 127dB
Frequency response: 20Hz~40kHz +/-0.5dB
Noise floor: <0.9μV
Output impedance: <0.12Q2
PCM: up to 32bit/384kHz
DSD: Native DSD64, DSD128, DSD256
Weight: 11g
Length: Approximately 105mm



DC04
DAC chip: CS43131*2
THD+N: -1 10dB/0.00032% (300Q load)
-108dB/0.00039% (32Q load)
Output level: 4Vrms (30022 load), 2.5Vrms (32Qload)
Output power: 195mW@32Q2
Signal to noise ratio: 133dB
Frequency response: 20Hz~40kHz +/-0.5dB
Noise floor: <0.9pV
Output impedance: <0.1202
PCM: up to 32bit/384kHz
DSD: Native DSD256, DSD128, DSD64
Weight: 12g
Length: Approximately 110mm




DC05
DAC chip: ES9219C*2
Maximum output level: 2Vrms (3002 Load), power is about 13mW
Maximum non-distortion level: 1.73Vrms (32Q2 Load), power is about 93mW
Maximum undistortion level: 1.5Vrms (16Q2 Load), power is about 140mW
Noise floor: 1 55pVrms
SNR: 121dB
THD+N: -105dBA (32Q2 load)
Output impedance: <0.5Q2
PCM: support 32bit/384kHz
DSD: Native DSD64, DSD128, DSD256
MQA: Support 16X expansion
Weight: about 9g
Length: Approximately 105mm




DC06
DAC chip: ES9219C*2
3.5mm single-ended output
Maximum undistortion level: 2Vrms (32QL oad, THD+N < -97dB)
Signal to noise ratio: 120dBA
Dynamic
