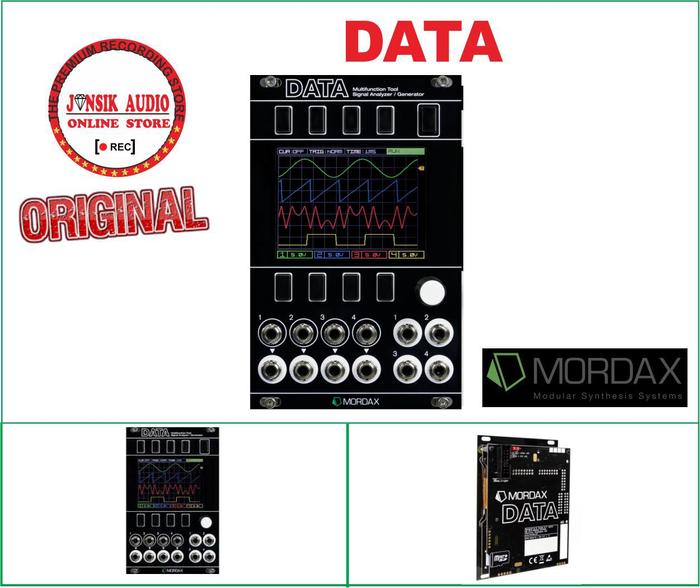

Mordax DATA Eurorack Modular Systems - Hitam
Rp8.167.000
Pilih warna: Hitam
DATA : The multifunction tool for Eurorack modular systems
16 HP (81.28mm width)
35mm approx. depth
Full color, 2.8 (71mm) display, with crystal clear, scratch resistant window
User upgradable firmware via included microSD card
Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more
Input / Output:
4 input jacks (+/-10V range), AC or DC coupled via on-screen control
4 buffered through jacks, one for each input channel
4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals
Power Consumption (average):
~250mA +12V
~60mA -12V
Quad Clock Source with Clock Division, Multiplication & Offset
External Sync or Internal Clock modes; use it as a precise and stable master clock, or as a clock processor syncd to an external clock source
Quad clock outputs, each can be a ratio of the main clock (internal/external), with 32 different div/mult values available, from /48 (12 measures) up to x48 (128th note triplets), including fractional factors (e.g., x1.3 = dotted 8th note)
Beat offset shift for each clock pulse, +/- 96 steps (up to one 4th note shift either direction)
Input jacks 1 & 2 act as Ext Clock Sync and Reset inputs while in External Sync mode and as Start/Stop and Reset while in Internal Clock mode
Input jacks 3 & 4 are user-assignable CV input sources, which can be assigned to control any of the 4 output channels div/mult values and offsets, with selectable attenuation per destination
NEW in Firmware V01.02.02: Clock upgraded from 2ch to 4ch clock output, new core, more div/mult values
Spectral Analyzer (single-FFT)
Display the current harmonic content of any of the 4 incoming signals
User-selectable filter window (Square/None, Hann, Bartlett, Blackman-Harris)
Peak frequency bin readout shows you frequency range of the first harmonic (fundamental frequency) in the signal
Spectrograph (multi-FFT)
16 HP (81.28mm width)
35mm approx. depth
Full color, 2.8 (71mm) display, with crystal clear, scratch resistant window
User upgradable firmware via included microSD card
Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more
Input / Output:
4 input jacks (+/-10V range), AC or DC coupled via on-screen control
4 buffered through jacks, one for each input channel
4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals
Power Consumption (average):
~250mA +12V
~60mA -12V
Quad Clock Source with Clock Division, Multiplication & Offset
External Sync or Internal Clock modes; use it as a precise and stable master clock, or as a clock processor syncd to an external clock source
Quad clock outputs, each can be a ratio of the main clock (internal/external), with 32 different div/mult values available, from /48 (12 measures) up to x48 (128th note triplets), including fractional factors (e.g., x1.3 = dotted 8th note)
Beat offset shift for each clock pulse, +/- 96 steps (up to one 4th note shift either direction)
Input jacks 1 & 2 act as Ext Clock Sync and Reset inputs while in External Sync mode and as Start/Stop and Reset while in Internal Clock mode
Input jacks 3 & 4 are user-assignable CV input sources, which can be assigned to control any of the 4 output channels div/mult values and offsets, with selectable attenuation per destination
NEW in Firmware V01.02.02: Clock upgraded from 2ch to 4ch clock output, new core, more div/mult values
Spectral Analyzer (single-FFT)
Display the current harmonic content of any of the 4 incoming signals
User-selectable filter window (Square/None, Hann, Bartlett, Blackman-Harris)
Peak frequency bin readout shows you frequency range of the first harmonic (fundamental frequency) in the signal
Spectrograph (multi-FFT)
