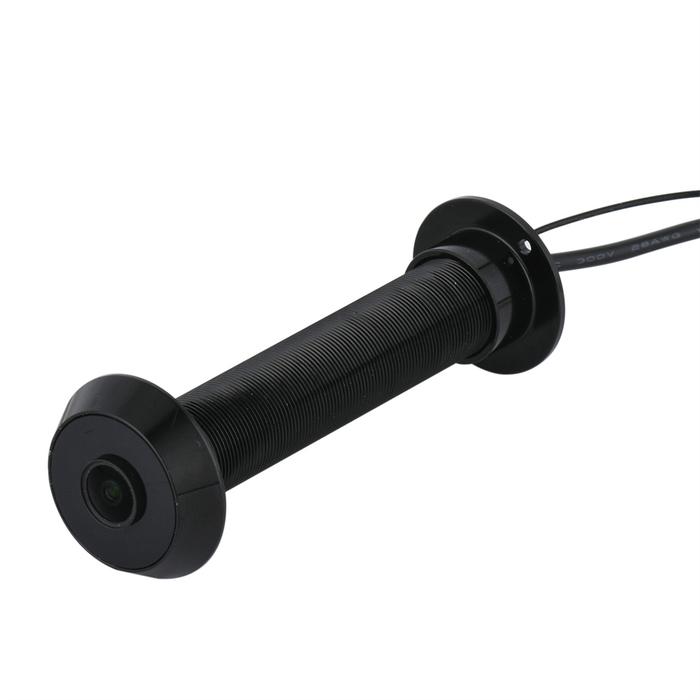

WiFi 16mm Door Camera -hole Diameter tuya Mini Peephole Security Door Cat Wide Angle IR Infrared Night Vision P2P ONVIF

Brand Name : HQCAM
Model Number : HQCAM
Color : black,Silver
Origin : Mainland China
Installation : Normal
Certification : CE
Special Features : door hole
Operating Temperature : -10-60
Sensor : CMOS
Style : Mini Camera
Shell Material : Metal
is_customized : Yes
Sensor Brand : SmartSens
High Definition : 1080P(Full-HD)
Megapixels : 2MP
Scene : Indoor
Connectivity : IP/Network Wireless
Lens (mm) : 1.44mm
Viewing Angle : 150
Minimum Illumination(Lux) : 0.1
IR Distance(m) : 7M
Video Compression Format : H.264
Supported Mobile Systems : Android,IOS
Supported Operating Systems : Windows 7,Windows 8,Windows 10
Power Supply(V) : 5V
Power Consumption(W) : 1
Dimensions (L x W x D)(mm) : 15.9mm
Audio Output : in mic
Storage : 128G
Power Supply : Normal
TF Card : None
Smart home platform : Tuya
App name : other
Color Night Vision : no
AI Functions : Motion Detection


Support 2.4G/5G WiFi Connection
* Support dual-channel wifi signal, wireless connection, dual antennas to provide stable signal reception, reduce signal reception obstacles.

Note: About 5G WiFi Connection to APP
NOW 5G connection is a new WiFi technology and has only been applied to security camera products in recent 2 years, there are many router brands around the world, and the technologies adopted may be different. Therefore, some router 5G may be incompatible with this camera. Please consider clearly and choose carefully before purchasing.

Currently known brands of 5g working routers (Keep updating):Tenda, Mercury, TP-Link, Netgear, Mi,HuaWei......
If you purchased this camera, CAN NOT ADD via 5G. NO WORRY! This camera also support 2.4G WiFi Connectioa

Motion Detection

The camera will detect real-time motion. When someone appears, notify you in real time through the APP.

Work with Alexa/Google Home
(Please contact customer service to open, this is a paid item)

* This WiFi IP camera can works with Alexa / Google Home. (OPTIONAL)
* You may use hands-free voice control to see what is happening in front of the camera lens. Alexa / Google Home Assistant will automatically
give you friendly responses and execute your commands like: "Alexa, show me the camera" "Sure, here you go."

160 Degrees camera with motion sensor (1080P high quality image)

-High sensitive Motion detection, with remote APP notification and record
- Motion detection auto photo / video record (video record need insert TF card (not include), or buy cloud service), proof for practical joke, etc
-Always free cloud for photos record(auto record last 30 days' photos, 30 days before photos will be covered auto), cloud video record need extra cost
- Look like as normal peephole, watch outdoor without get attention of the people who is outdoor

ONVIF and RTSP are supported
XMEYE's NVR click Search, then add a camera, other brands of cameras are the same operation, provided that the camera must be connected to the wifi network, the camera and the NVR must be within the same LAN
There are two versions of the camera firmware and two formats of the RTSP. Select a format. IP Enter the IP address of the camera

The size of silver and black is the same, and the function is the same, just the difference in color

The working current of the camera is 480mA, the shell is made of aluminum alloy, operating temperature will be around 40-65, please do not worry, this is normal, because the PCB module is close to the aluminum alloy shell, and the heat can be dissipated through the shell,The aluminum alloy shell conducts heat very well, so you will feel very hot, please don't worry, it will work normally, we have passed a long test in the outdoor sun.

Packing List

1* 2MP WIFI Camera
1* English User Manual
1* Power Supply
Warm tips: the SD Card is optional.

Support for watching surveillance video on multiple platforms
2MP FHD real-time monitoring, Support Windows, Android, IOS.
Note:
The website for viewing the surveillance video on the PC :

Please remove the protective film before use!!

Correct installation of TF card!!

The right way to mount the camera!!

First test your own door hole size, and then refer to the size information in the description before deciding to buy a camera, the wrong purchase will lead to installation failure!! Thank you!

This is a warehouse, no lights and Windows, completely dark environment, this photo is a screenshot, the pixels have been compressed, the actual photo is clearer!

Taking pictures in the living room, turning on the lights during the day
