Digital Ampermeter Voltmeter 100V 100A DC RED
Rp33.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Alat Ukur
Sebelum Order Tanya stok dulu via diskusi atau cek stok di web resmi jogjarobotika ( buka web jogjarobotika com search nama produk)
Toko kami sudah berpengalaman sejak 2011 di bidang penjualan sparepart online/offline.
Pengiriman komponen anda aman dengan packing dus dan bubble pack (free).
+==================================================================+
Detail : Cek Gambar
Harga adalah untuk 1 pcs
+==================================================================+
Digital Ampermeter Voltmeter 100V 100A DC RED
Warna Voltmeter = Merah
Warna Ampermeter = Merah

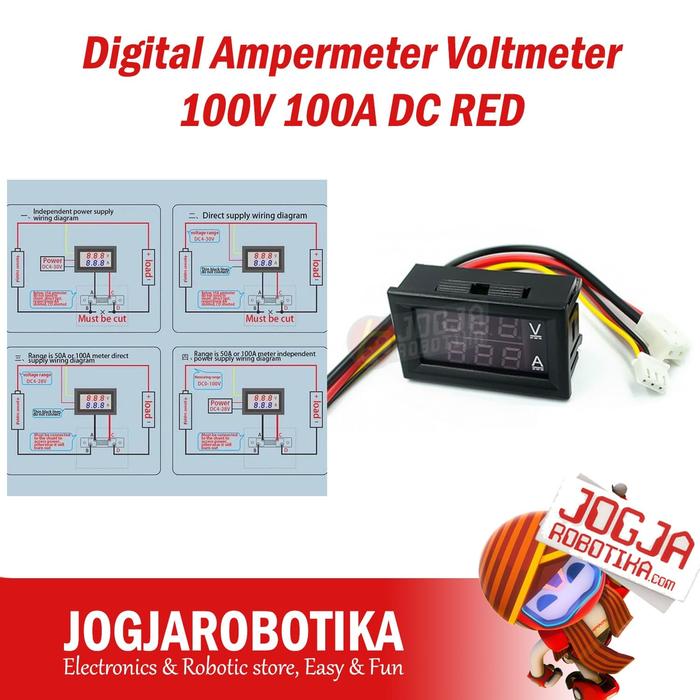

--------WIRING LIHAT FOTO-----
Model: DSN-VC288 , Brand: D-SUN
Precautions:
1. The meter with a range of 50A or 100A must be connected to the shunt to power on, otherwise it will burn out.
2. The power supply range of this meter is 4 ~ 30V (out of range will burn out), and the measurement range is 0 ~ 100V.
Technical Parameters:
Voltage measurement range: 0.0V-100V
Current test range: 0-100A
Power supply range: DC4-30.0V
Voltage error: ± 0.1%
Current error: ± 1%
External shunt specifications: 75 milliohms
Working current: Refresh speed: About 300mS once
Display method: Double three bit 0.28 ” LED digital tube
Display color: Red + red
Lead length: 15cm
Dimensions: 48 x 29 x 22 mm , length X width X thickness;
An installation hole: 46 x 27 mm
Operating temperature: -10 ℃ ~ 65 ℃
*Note: WAJIIB PAKAI R SHUNT, beli R Shunt disini
R Shunt 50A tokopedia com/jogjarobotika/fl-2-resistor-shunt-resistor-dc-50a-75mv-digital-ammeter-ampermeter
R Shunt 100A tokopedia com/jogjarobotika/fl-2-resistor-shunt-resistor-dc-100a-75mv-digital-ammeter-ampermeter
