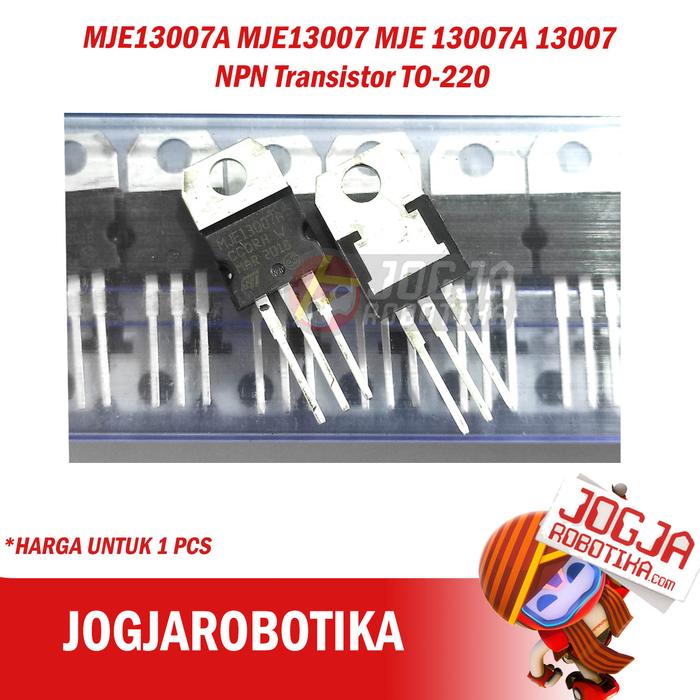

MJE13007A MJE13007 MJE 13007A 13007 NPN Transistor TO-220
Rp2.300
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Mosfet Transistor Triac IGBT
MARKING RANDOM KADANG MJE KADANG ST13007A
MJE13007A MJE13007 MJE 13007A 13007 NPN Transistor TO-220
Type Designator: MJE13007A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 700 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 110 pF
Forward Current Transfer Ratio (hFE), MIN: 8
Noise Figure, dB: -
MJE13007A MJE13007 MJE 13007A 13007 NPN Transistor TO-220
Type Designator: MJE13007A
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 700 V
Maximum Collector-Emitter Voltage |Vce|: 400 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 110 pF
Forward Current Transfer Ratio (hFE), MIN: 8
Noise Figure, dB: -
