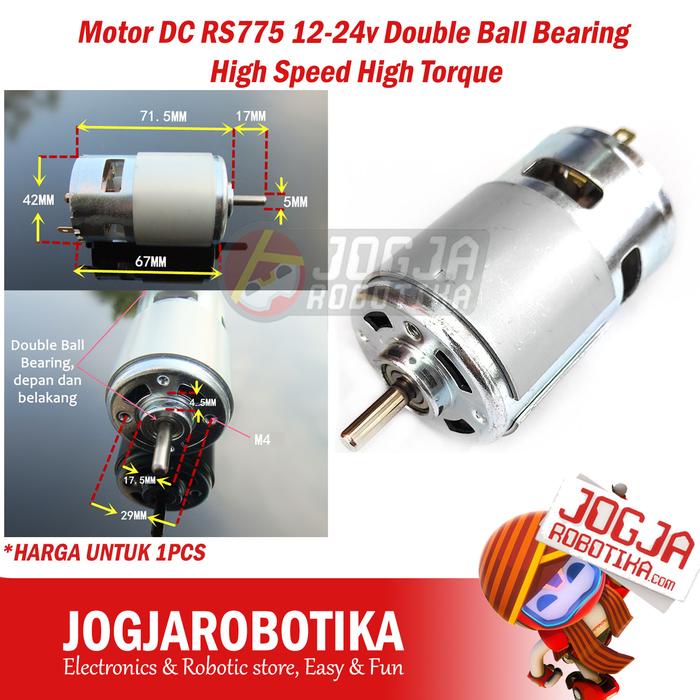

Motor DC RS775 12-24v Double Ball Bearing High Speed High Torque 775

Pengiriman komponen anda aman dengan packing dus dan bubble pack (free).
+==================================================================+
Detail : Cek Gambar Harga adalah untuk 1 pcs
+==================================================================+
Motor DC RS775 12-24v Double Ball Bearing High Speed High Torque

Rated voltage: 12VDC (12-24V is the best)
No-load current: 1.05A (the size of the current fully reflects the solid workmanship)
No-load speed: 12V 10000-11000 rpm, 24V 20000-22000rpm
Motor step height: 4.5mm M
otor step diameter: 17.5mm
Motor diameter: 42mm
Motor length (excluding shaft): 67mm
Shaft length: 17mm
Shaft diameter: 5mm
Motor tail step height: about 5mm
The shaft length of the motor tail: about 6mm
The pitch of the mounting holes: about 29mm
Mounting hole diameter: M4 screw
Motor weight: 350g The starting current should be more than 10A, use a switching power supply or a power supply such as a battery
