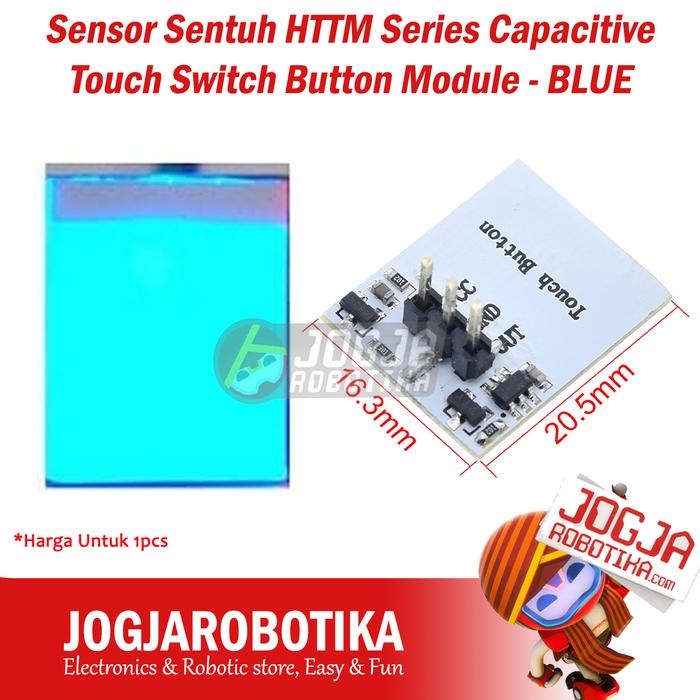

Sensor Sentuh HTTM Series Capacitive Touch Sensor Switch Button Module - Biru
Rp11.000
Pilih warna: Biru
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Sebelum Order Tanya stok dulu via diskusi atau cek stok di web resmi jogjarobotika ( buka web jogjarobotika com search nama produk)
Toko kami sudah berpengalaman sejak 2011 di bidang penjualan sparepart online/offline.
Pengiriman komponen anda aman dengan packing dus dan bubble pack (free).
+==================================================================+
Detail : Cek Gambar
Harga adalah untuk 1 pcs
+==================================================================+
Sensor Sentuh HTTM Series Capacitive Touch Sensor Switch Button Module
Ada 2 Warna LED Silahkan pilih
Biru / Blue
Merah / Red
HTTM series touch button module has the following features:
1. No mechanical parts, no wear, unlimited life, reduce later maintenance costs;
2. Its sensing part can be placed behind any insulation layer (usually glass or plastic material), and it is easy to make a keyboard sealed with the surrounding environment to play a moisture-proof and waterproof role;
3. The panel pattern is as you like, the size and shape of the buttons are arbitrarily designed, and the characters, trademarks, see-through windows, etc. are arbitrarily matched, so that the overall sense of the product is stronger;
4. Compared with physical buttons, touch buttons are less likely to be damaged;
5. You can adjust whether the output of the signal is a latched output or a level-hold output by modifying the resistance on the back (see 3.3.2 for details);
6. +2.7V~+6V wide voltage input range, +3.3V signal output, can be directly used to drive relays, optocouplers, LED lights and other originals;
7. -30~+70°C working temperature range;
8. Sensitive to touch, no adverse reactions such as hysteresis, delay, and flicker;
9. Built-in anti-interference algorithm, with excellent anti-interference performance.
Pin definitions and parameters
Working voltage: +2.7~6V
Working temperature: 30~+70°C
The OUT pin output voltage: +3.3V ± 0.1V
OUT pin output current: 500mA
Toko kami sudah berpengalaman sejak 2011 di bidang penjualan sparepart online/offline.
Pengiriman komponen anda aman dengan packing dus dan bubble pack (free).
+==================================================================+
Detail : Cek Gambar
Harga adalah untuk 1 pcs
+==================================================================+
Sensor Sentuh HTTM Series Capacitive Touch Sensor Switch Button Module
Ada 2 Warna LED Silahkan pilih
Biru / Blue
Merah / Red
HTTM series touch button module has the following features:
1. No mechanical parts, no wear, unlimited life, reduce later maintenance costs;
2. Its sensing part can be placed behind any insulation layer (usually glass or plastic material), and it is easy to make a keyboard sealed with the surrounding environment to play a moisture-proof and waterproof role;
3. The panel pattern is as you like, the size and shape of the buttons are arbitrarily designed, and the characters, trademarks, see-through windows, etc. are arbitrarily matched, so that the overall sense of the product is stronger;
4. Compared with physical buttons, touch buttons are less likely to be damaged;
5. You can adjust whether the output of the signal is a latched output or a level-hold output by modifying the resistance on the back (see 3.3.2 for details);
6. +2.7V~+6V wide voltage input range, +3.3V signal output, can be directly used to drive relays, optocouplers, LED lights and other originals;
7. -30~+70°C working temperature range;
8. Sensitive to touch, no adverse reactions such as hysteresis, delay, and flicker;
9. Built-in anti-interference algorithm, with excellent anti-interference performance.
Pin definitions and parameters
Working voltage: +2.7~6V
Working temperature: 30~+70°C
The OUT pin output voltage: +3.3V ± 0.1V
OUT pin output current: 500mA
