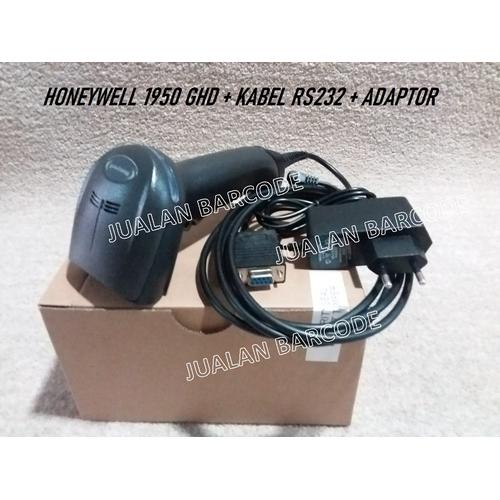

2D BARCODE SCANNER HONEYWELL 1900 GSR or 1900 GHD KABEL RS232 +ADAPTOR - 1950 nonstand

xenon 1900 Technical Specifications

Mechanical RoHS 2002/95/EC
Dimensions (LxWxH) 104 mm x 71 mm x 160 mm (4.1 x 2.8 x 6.3)
Weight147 g (5.2 oz)
Electrical Input Voltage 4 VDC to 5.5 VDC
Operating Power 2.3 W (450mA @ 5 VDC)
Standby Power 0.45 W (90mA @ 5 VDC)
Interface RS232 | SERIAL
EnvironmentalOperating Temperature 0C to 50C (32F to 122F)
Storage Temperature 40C to 70C (-40F to 158F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 50 1.8 m (6) drops to concrete
Ratchet stand: Designed to withstand 50 1.2 m (4) drops to concrete on each of the faces
Environmental Sealing IP41
Light Levels
0 to 100,000 lux (9,290 foot-candles)
Ratchet Cycles
The ratchet stand shall support 10,000 cycles (each cycle is one full movement of the scanner either up or down)
Scan Performance
For more information:

Scan Pattern
Area Image (838 x 640 pixel array)
Motion Tolerance
Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus
Scan Angle
HD Focus: Horizontal 41.4; Vertical: 32.2SR Focus: Horizontal: 42.4; Vertical: 33
ER Focus: Horizontal: 31.6; Vertical: 24.4
Symbol Contrast 20% minimum reflectance difference
Pitch, Skew 45, 65
Decode Capability Reads standard 1D, PDF, 2D, Post
Perlengkapan : unit scanner + kabel serial + adaptor
GARANSI 1 TAHUN UNIT SAJA ( TIDAK TERMASUK KABEL DAN ADAPTOR )

NOTE :
GARANSI berlaku apabila Customer memberikan :
- Video Open box ( kami selalu tempelkan stiker open box di bungkus paket ) apabila Customer
tidak
melampirkan video sebelum membuka paket, mohon maaf kami tidak menerima komplain dalam
bentuk apapun juga.
- TANDA SENYUM+ ULASAN+ BINTANG 5 akan pelayanan kami, apabila ada permasalahan akan
pelayanan kami, Customer
menghubungi kami terlebih dahulu sebelum memberikan penilaian. Pembeli mendapatkan
Keuntungan & Penjual Juga untung. Mohon kerjasama nya
