Litevna-64 A Vector 50Khz-6.3Ghz Antena VNA Analyzer 6.3 Ghz Lite

LiteVNA as small as NanoVNA and has an ultra-wide measuring range of 50kHz-6.3GHz, a portable vector network analyzer VNA.
In order to reduce the power consumption and volume, LiteVNA only uses a mixer, through the internal RF switch, can perform S11, S21 measurement, And can perform TDR and DTF measurement after IFFT calculation.
In addition to a wider measurement range, LiteVNA also has faster scan speeds and more scan points. The consistent operation interface with NanoVNA makes it easy to use LiteVNA as a field test tool.
LiteVNA has a Micro-SD slot, You can save field or screen test data to the Micro-SD card at any time
The 6.3GHz measurement range, in addition to satisfying common amateur radio and Internet of Things applications, can also handle 5GHz testing, 5.8GHz wifi and 5.8GHz image transmission.

Cor: black
Material: metal + plastic

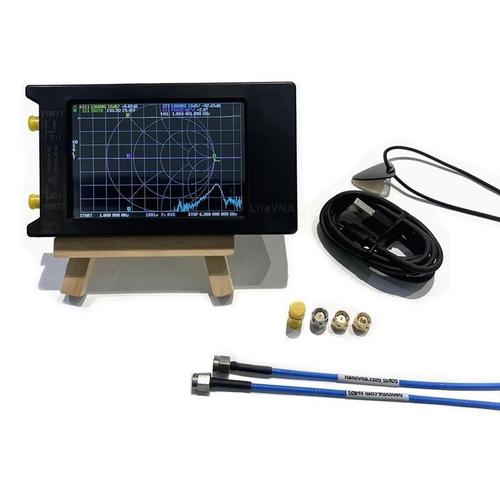

Package Contents:
1 * LiteVNA-64 analyzer
1 * USB Type-C data cable
2 * 30cm SMA male to male SS405 RF cable
1 * SMA male calibration kit - OPEN
1 * SMA male calibration kit - SHORT
1 * SMA male calibration kit - LOAD
1 * SMA female to female connector
